Signal Surge Protective Device
BNC Interface
For Video Data Transmission
OEM/ODM acceptable
Item NO.:

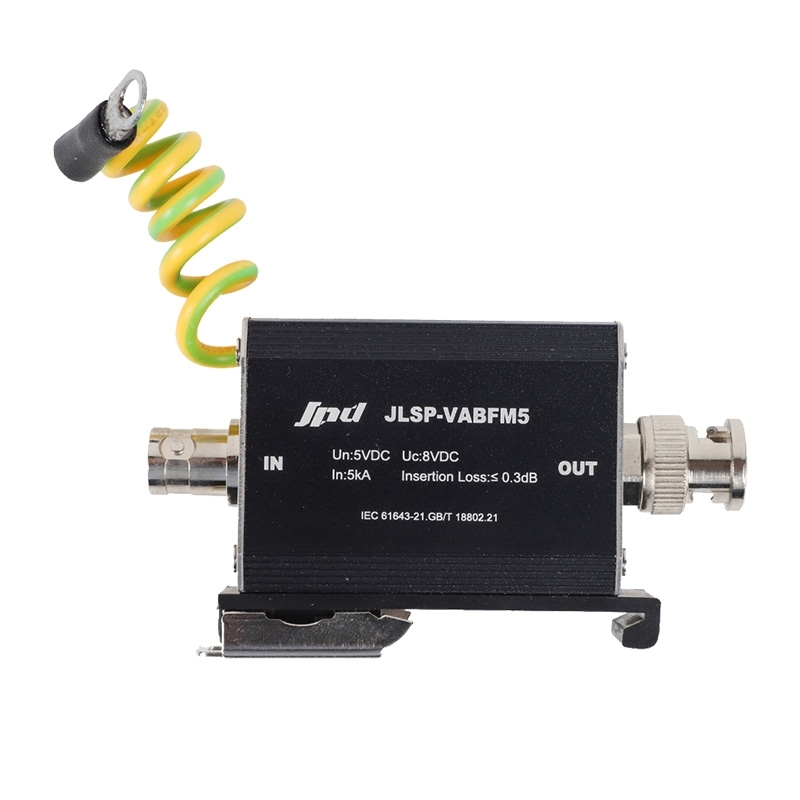

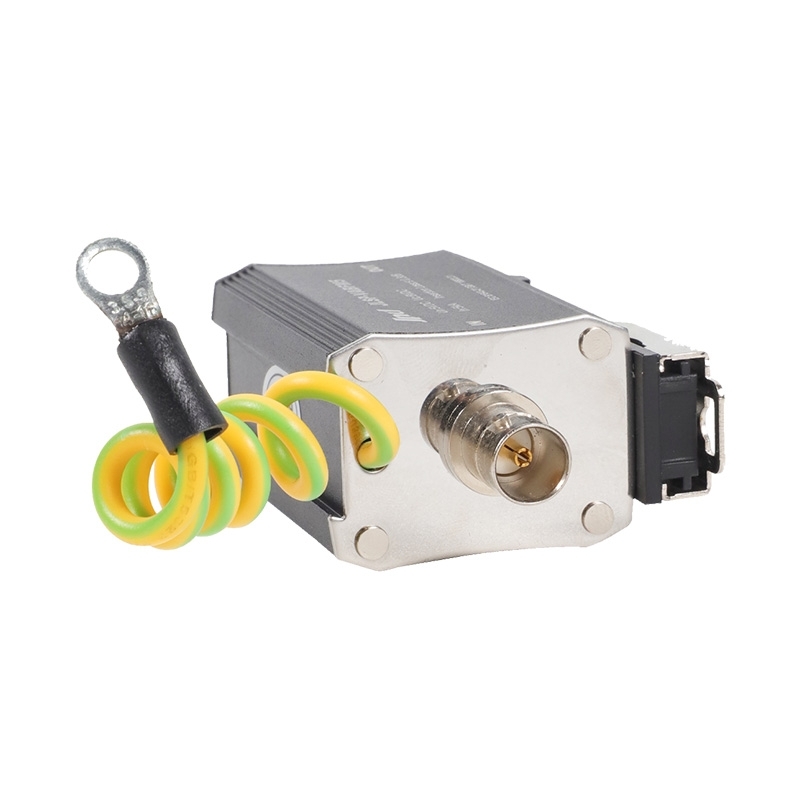

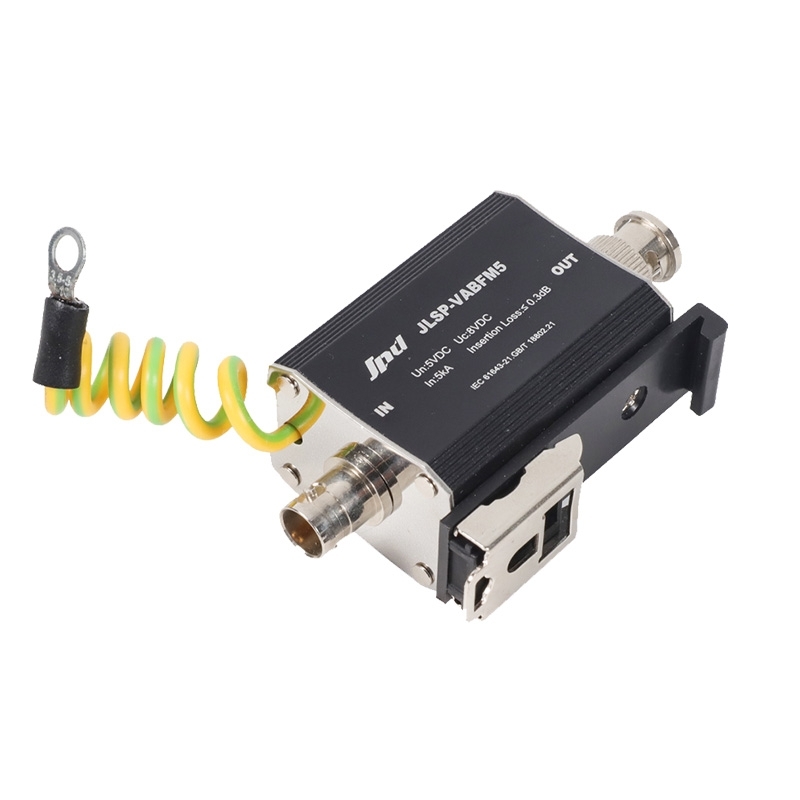

JLSP-VABFM5Video Data Transmission SPD Jinli JLSP-VABFM5 Surge Protection Device
It is suitable for coaxial communication equipment such as cable television, public television, instruments, monitoring systems and video-on-demand systems, and is dedicated to lightning and surge protection at the equipment end.
Features:
* Low insertion loss and low voltage protection level
* Fast response: action with nanosecond
* High rate transmission
* Large discharge current capacity
* DB9 interface, easy mounting
* Protection for data line with D-SUB interface
|
Model |
Nominal voltage Un(V) |
Max.continuous operatingvoltage Uc(Vdc) |
Nominal discharge current In(kA) |
Protection level Up(line-line)(V)(B2:4kV) |
Protection level Up(line-PE)(V)(B2:4kV) |
Frequency(MHz) |
Impedance |
Insertion loss(dB) |
|
JLSP-VABFM5 |
5 |
8 |
5 |
≦30 |
≦600 |
10 |
50 |
≦0.3 |
Hot tags:Signal Surge Protective Device, SPD with DB9, B9 Connection SPD, Surge Protecition Device, Surge Protector
