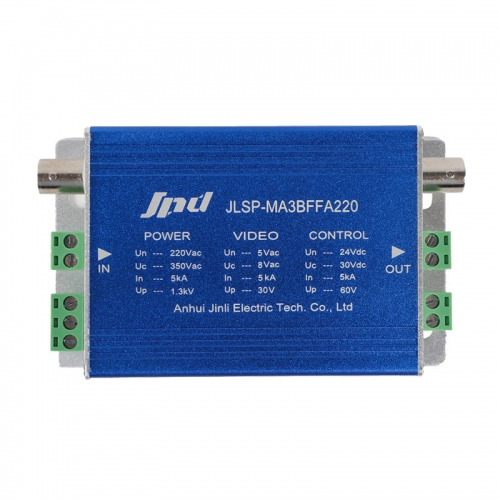

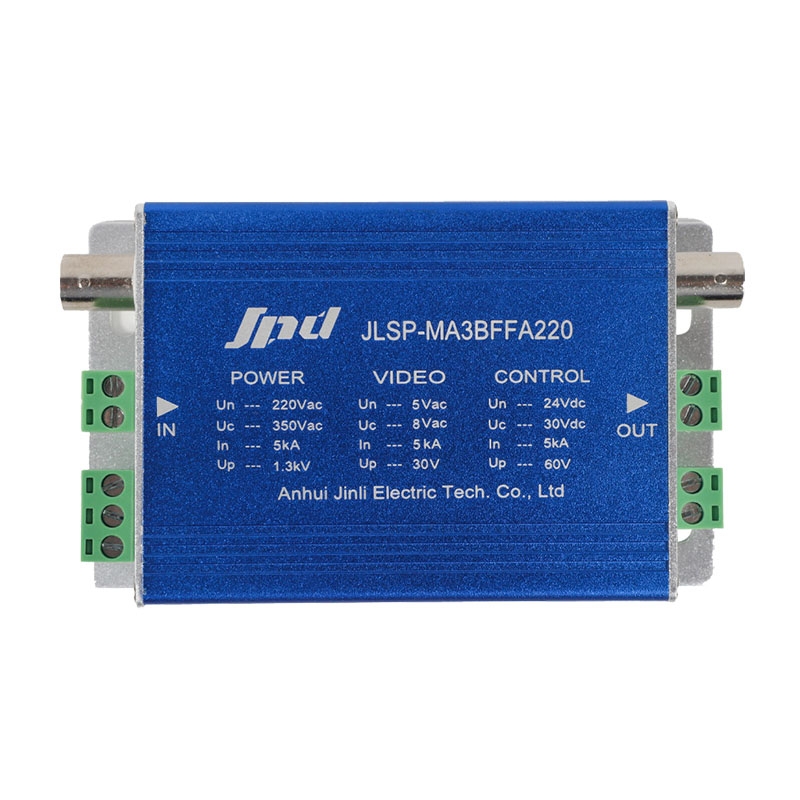

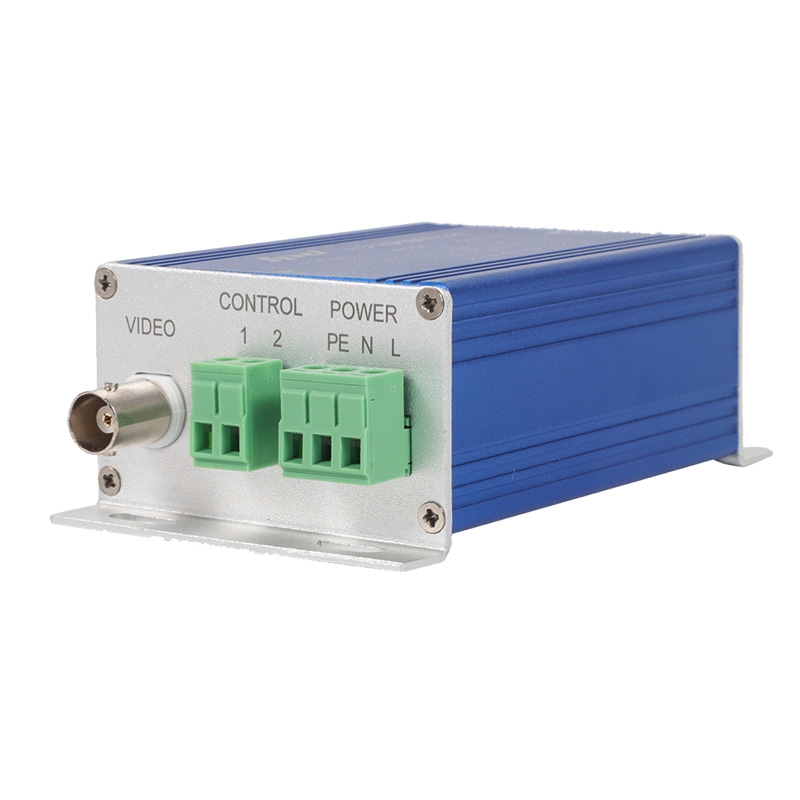

3 in 1 surge protection device
Power, data, video in single unit
BNC interface
OEM acceptable
Power Video data 220V AC CCTV camera Monitor 3 in 1 surge protection device
It is suitable for AC / DC power supply, with (or without) PTZ control port monitoring camera lightning protection, multi-functional integrated design, reduce the protection cost and installation difficulty, reduce the installation space, and maximize the use of equipotential protection principle, greatly improve the protection effect.
Standard compliance
IEC61643-21
Features:
* Low insertion loss and low voltage protection level
* Fast response: action with nanosecond
* High rate transmission
* Large discharge current capacity
* BNC connection
* Power, data and video in single unit
| Model | Function | Application | Nominal voltage Un(V) | Max.continuous operatingvoltage Uc(Vdc) | Nominal discharge current In(kA) | Protection level Up(line-line)(V)(B2:4kV) |
Protection level Up(line-PE)(V)(B2:4kV) |
Max.data rate (Mbps) | Impedance | Insertion loss(dB) | Connection |
| JLSP-MA3BFMA220 | Power, data and video in single unit | AC | 220 | 350 | 5 | --- |
≦1300 |
--- | --- | --- | --- |
| Video | --- | --- | 5 |
≦30 |
≦600 |
10 | 50 |
≦0.3 |
BNC | ||
| Data | --- | --- | 5 |
≦30 |
≦600 |
--- | --- |
≦0.3 |
--- |
