RoHS, IEC, UL certificates Phase：4P
DIN Rail 35mm
Easy to be replaced with pluggable design
Packing with inner box to prevent transport vibration
Item NO.:
JLSP-GA440/40/4POrder(MOQ):
1Product Origin:

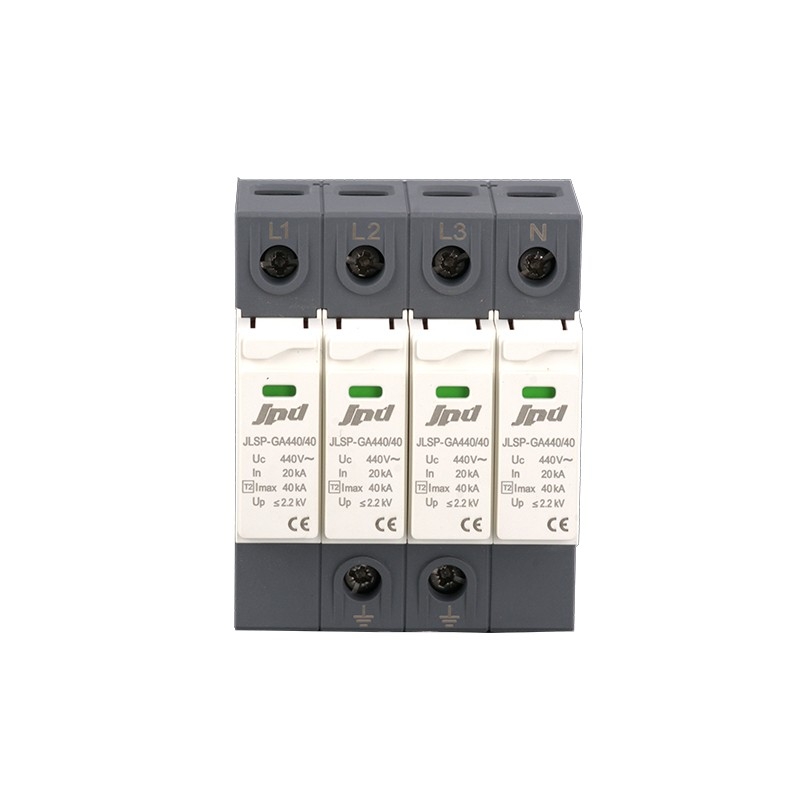

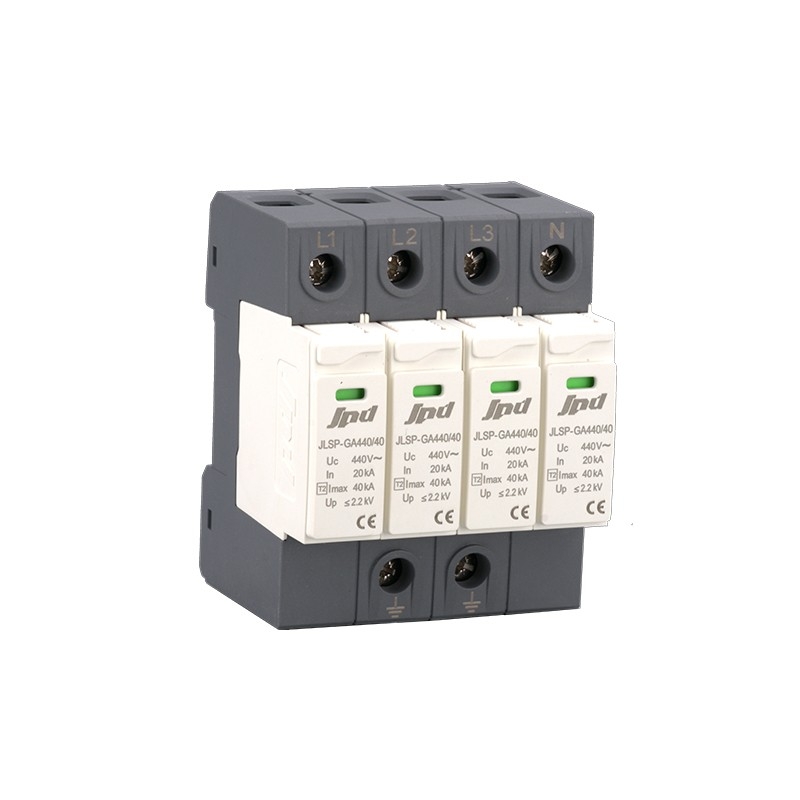

CNType 2 AC SPD 1P, 2P, 3P, 4P 40kA 230/400, 240/415V
AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.
Standard compliance: IEC61643-11, EN61643-11
IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods
Features:
* Reliable thermal tripping protection
* Status indicator: Green(normal) Red（Defect）
* Fast response: action within nanosecond
* Optional remote signaling
* Pluggable design, easy to mount
* Latest reflow soldering process, ensure product consistency
|
Model |
JLSP-GA440/40/4P |
|
Descrpition |
Type 2 AC surge protector |
|
AC Network Un (50/60Hz) |
230/400, 240/415V (TN/TT/IT) |
|
Max. AC operating voltage (Uc) |
440V |
|
Nominal discharge current In(kA) |
20kA |
|
Max. Discharge current Imax (kA) |
40kA |
|
Protection level Up (kV) |
≦2.2kV |
|
Dimensions |
72*90*62MM |
|
Protection rating |
IP 20 |
|
Response time tA (ns) |
≦25 |
|
Oeprating temperature |
-40/+85℃ |
|
Mounting |
DIN Rail 35mm |
|
Housing material |
Thermoplastic UL94-V0 |
|
Standards compliance |
IEC64643-11, GB/T18802.11 |
