AC surge protector, single phase surge arrester
Uc=275V, In:20kA, Imax: 40kA, used in 120/208V, 230V, 202V TN/TT/IT system
Low voltage Up
Internal disconnection, statue indicator, and remote signaling
IEC 61643-11
OEM acceptable
Sungrow, Goodwe, Growatt, Huawei supplier
Item NO.:

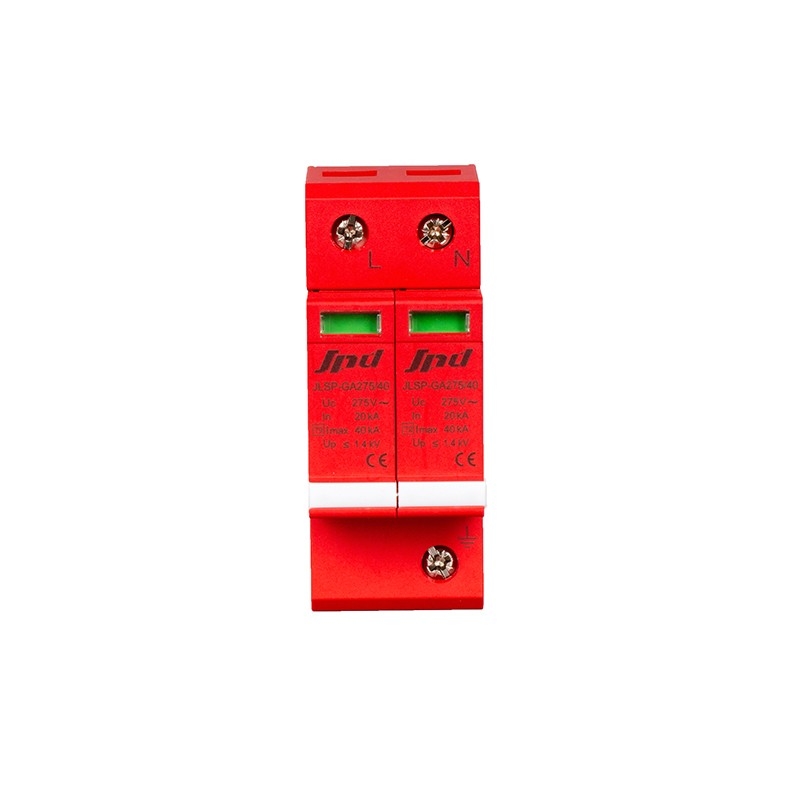

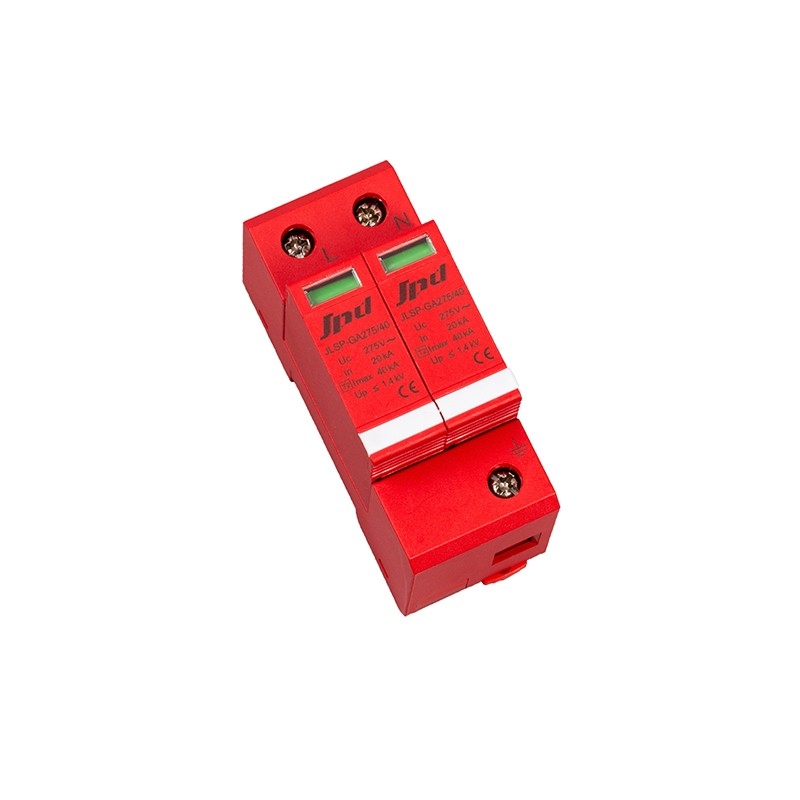

JLSP-GA275/40/2PType 2 single phase ac power surge protector device SPD 220V
AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.
Standard compliance: IEC61643-11, EN61643-11
IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods
Features:
* Reliable thermal tripping protection
* Status indicator: Green(normal) Red（Defect）
* Fast response: action within nanosecond
* Optional remote signaling
* Pluggable design, easy to mount
* Latest reflow soldering process, ensure product consistency
Model
JLSP-GA275/40/2P
Descrpition
Type 2 AC surge protector-2poles
Network
202,230,120/208V (TN/TT/IT)
Max. AC operating voltage (Uc)
275V
Nominal discharge current In(kA)
20kA
Max. Discharge current Imax (kA)
40kA
Protection level Up (kV)
≦1.4kV
Dimensions
36*90*62MM
Protection rating
IP 20
Response time tA (ns)
≦25
Oeprating temperature
-40/+85℃
Mounting
DIN Rail 35mm
Housing material
Thermoplastic UL94-V0
Standards compliance
IEC64643-11, GB/T18802.11
