Type 1+2 AC power surge protector, with remote signaling
Iimp:12.5kA; In=20kA
Low voltage Up
Internal disconnection, statue indicator, and remote signaling
IEC 61643-11
CE, TUV, RoHS
For Huawei projects
Item NO.:

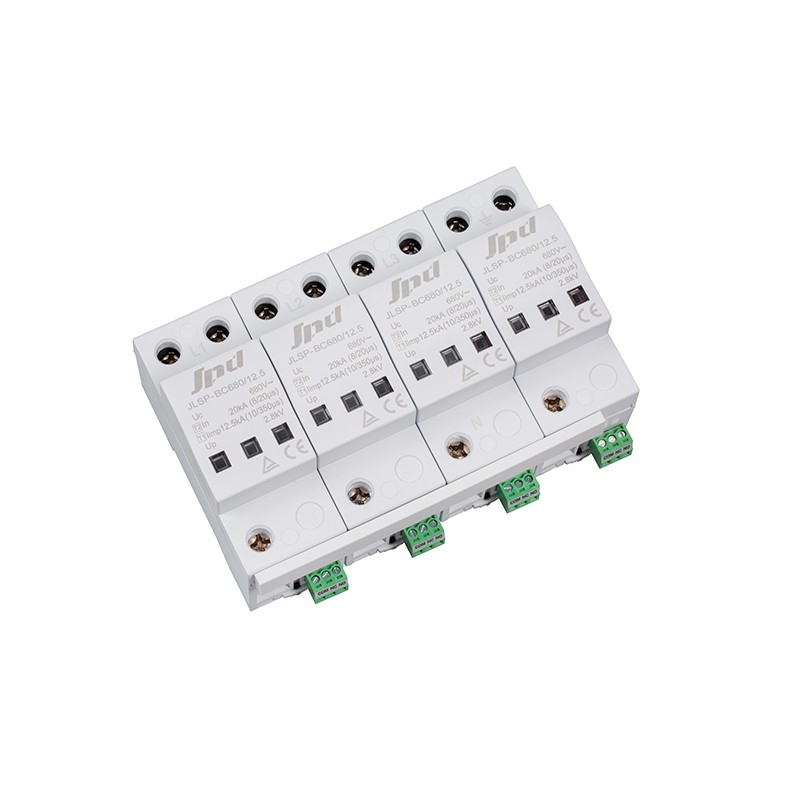

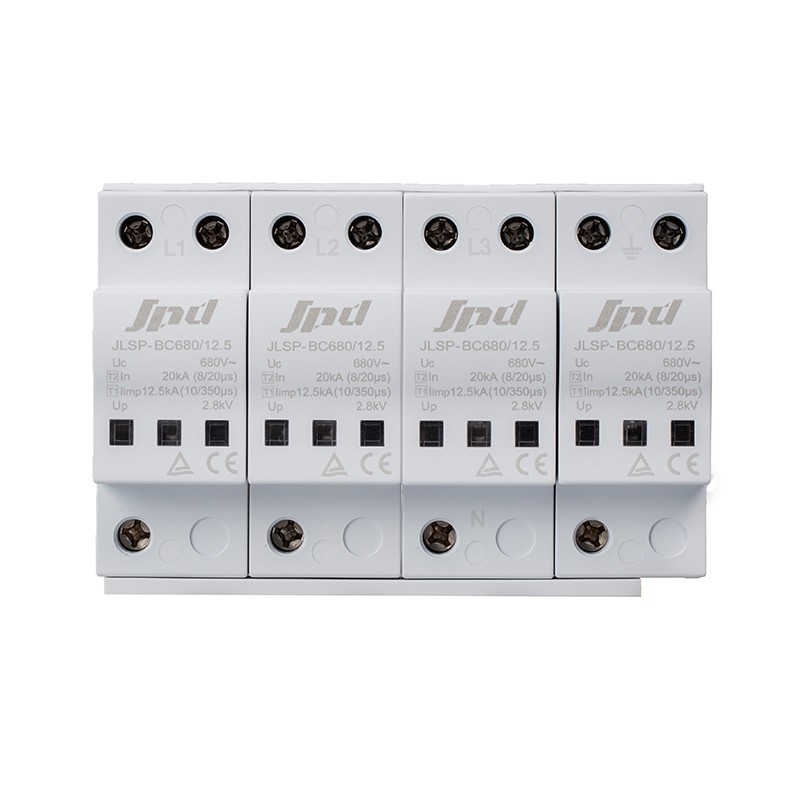

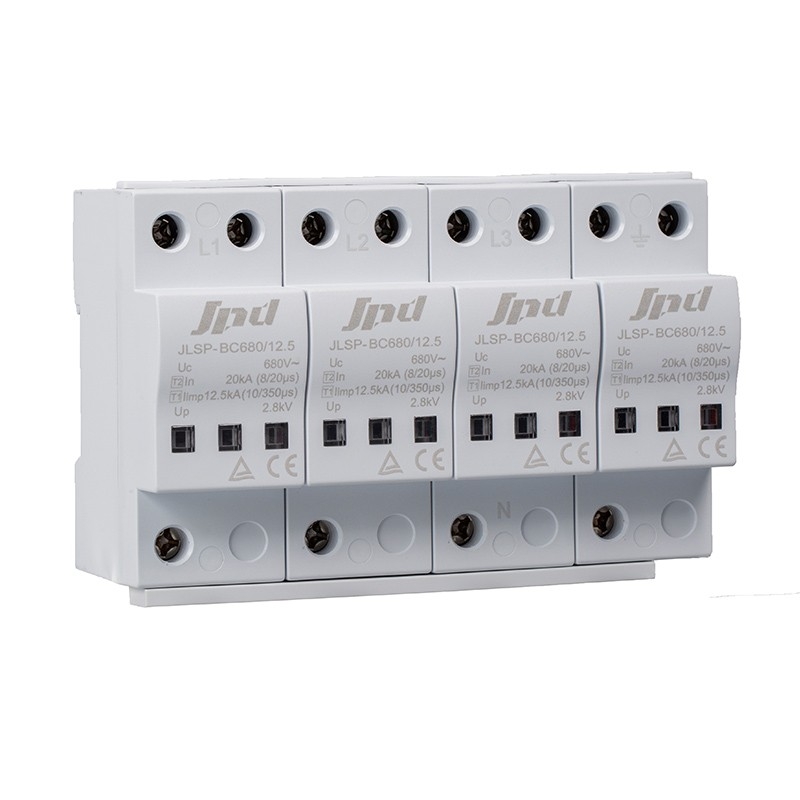

JLSP-BC680/12.5/3P+1Type 1+2 AC surge protection device three phase SPD 680V 12.5kA, for Huawei projects
4 poles type 1 2 spd, 3 phase surge protector
AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.
Standard compliance: IEC61643-11, EN61643-11
IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods
Features:
* Reliable thermal tripping protection
* Status indicator: Transparent(normal) Red（Defect）
* Fast response: action within nanosecond
* Optional remote signaling
* Easy to mount
* Latest reflow soldering process, ensure product consistency
| Model | JLSP-BC680/12.5/4P |
| Descrpition | Type 1+2 AC surge protector-4poles |
| Network | 460,277/480, 400/690V (TN/TT/IT) |
| Max. AC operating voltage (Uc) | 680V |
| Lightning impluse current Iimp(kA) | 12.5kA |
| Nominal discharge current In(kA) | 12.5kA |
| Protection level Up (kV) | ≦2.8kV |
| Dimensions | 144*90*65MM |
| Protection rating | IP 20 |
| Response time tA (ns) | ≦25 |
| Oeprating temperature | -40/+85℃ |
| Mounting | DIN Rail 35mm |
| Housing material | Thermoplastic UL94-V0 |
| Standards compliance | IEC64643-11, GB/T18802.11 |
Keywords: type 1 2 surge protection device, 3 phase surge protector, ac surge protector
