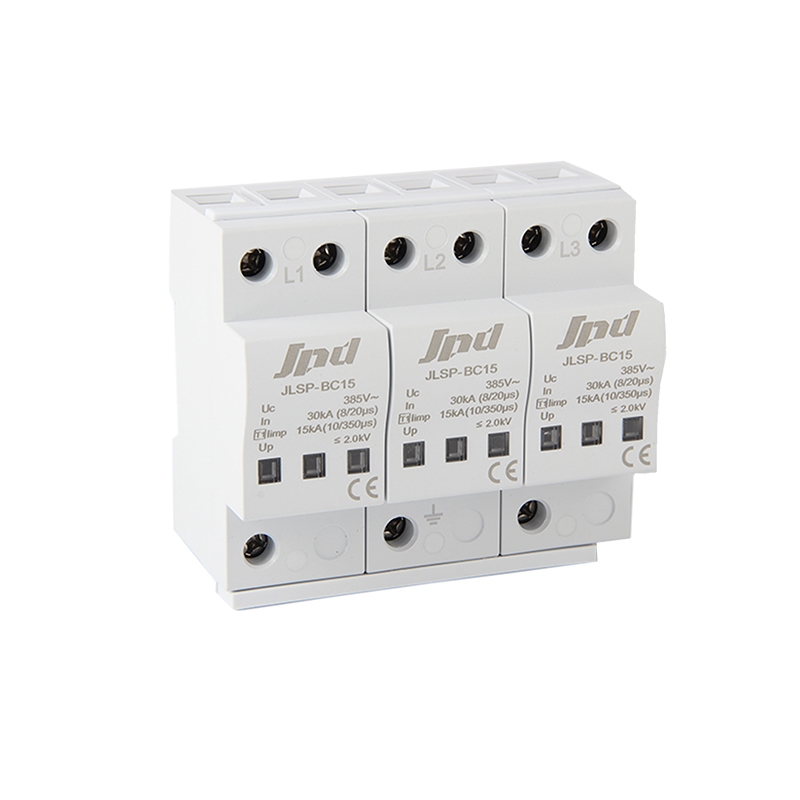

Type 1 AC surge protection device 3poles SPD 15kA

Type 1+2 AC surge protector device

Iimp:15kA； In: 30kA

Low voltage Up

Internal disconnection, statue indicator, and remote signaling

IEC 61643-11

OEM acceptable

Item NO.:
JLSP-BC15/3P

Inquire now

Product Detail

Type 1 2 AC surge protection device 3poles SPD, surge arrester type 1

AC surge protection device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 320, 350V, 385V, 440V, 485V and 750V.

Jinli Electric, professional surge protection device manufacturer, with own factory and laboratory which certificated with UL and TUV. We keep offering spds to Sungrow, Goodwe, Growatt, Hopewind and also work with Huawei on some projects.

Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods

Features:

* Reliable thermal tripping protection

* Status indicator: Transparent(normal) Red（Defect）

* Fast response: action within nanosecond

* Optional remote signaling

* Easy to mount

* Latest reflow soldering process, ensure product consistency

Model	JLSP-BC15/3P
Descrpition	Type 1+2 AC surge protector-3poles
Network	230/400V (TN/TT/IT)
Max. AC operating voltage (Uc)	385V
Lightning impluse current Iimp(kA)	15kA
Nominal discharge current In(kA)	30kA
Protection level Up (kV)	≦2.0kV
Dimensions	1449065MM
Protection rating	IP 20
Response time tA (ns)	≦25
Oeprating temperature	-40/+85℃
Mounting	DIN Rail 35mm
Housing material	Thermoplastic UL94-V0
Standards compliance	IEC64643-11, GB/T18802.11

class 1 spd

three phase surge protector

Keywords: ac surge protection device, ac surge protector, dc spd, spd type 1, surge protection device manufacturers, spd manufacturer
