SPD AC Surge Protection Device
Uc=350v, In:20kA, Imax: 40kA
Low voltage Up
Thermal Tripping Protection, status indicator, and remote signaling
IEC 61643-11
OEM/ODM acceptable
Item NO.:

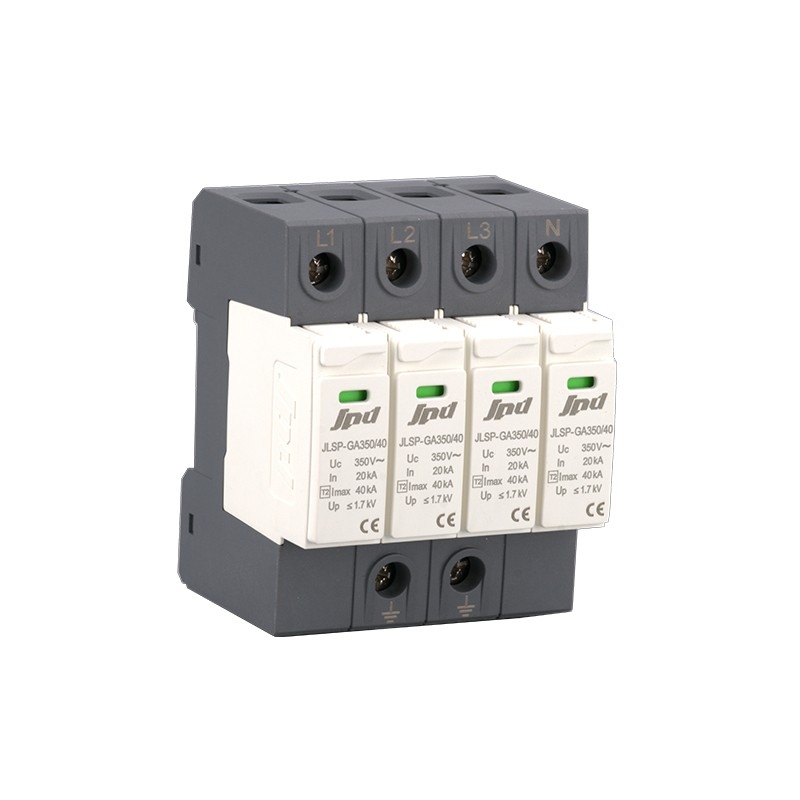

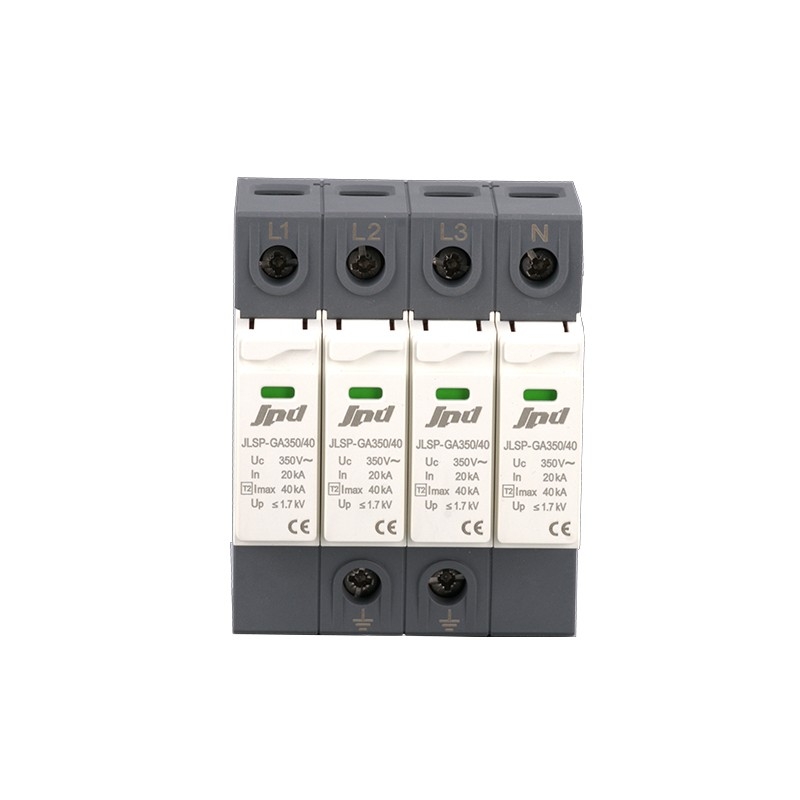

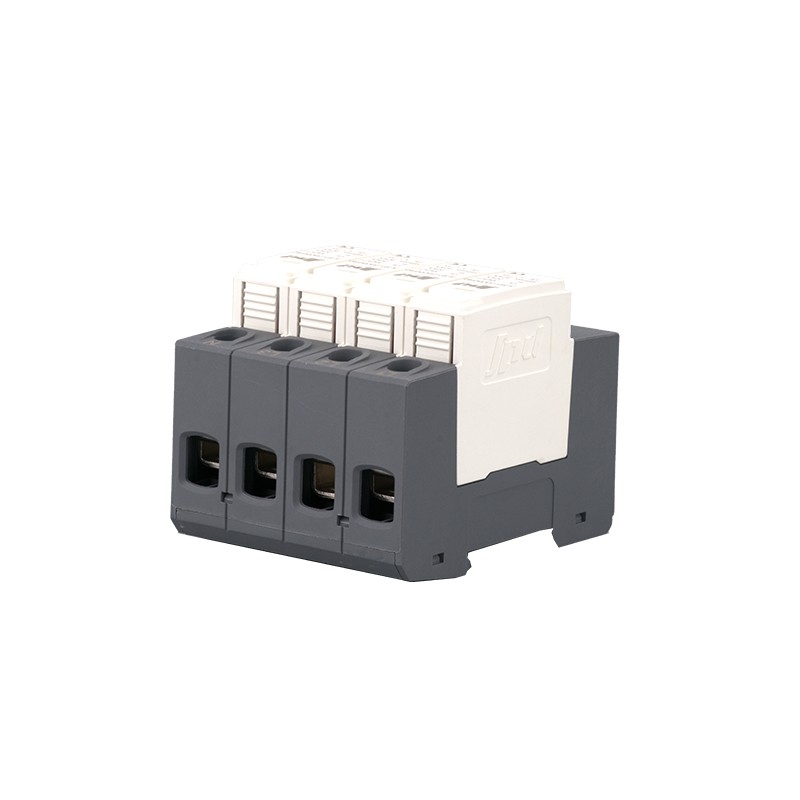

JLSP-GA350/40/4PSurge Protection Device Jinli AC SPD JLSP-GA350/40 with 350v 40kA
AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.
Standard compliance: IEC61643-11, EN61643-11
IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods
Features:
* Reliable thermal tripping protection
* Status indicator: Green(normal) Red（Defect）
* Fast response: action within nanosecond
* Optional remote signaling
* IEC Class: Class Ⅱ
| Model | JLSP-GA350/40/4P |
| Descrpition | Type 2 AC Surge Protection Device-4P |
| AC Network Un (50/60Hz) (V) | 230/400(TN/TT/IT) |
| Max. AC operating voltage (Uc) | 350V |
| Nominal discharge current In(kA) | 20kA |
| Max. Discharge current Imax (kA) | 40kA |
| Protection level Up (kV) | ≦1.7 |
| Dimensions(1P) (mm) | 18*90*62 |
| Protection rating | IP 20 |
| Response time tA (ns) | ≦25 |
| Oeprating temperature | -40/+85℃ |
| Mounting | DIN Rail 35mm |
| Flame Retardant Rating | UL94 V-0 |
| Standards compliance | IEC61643-11, GB/T18802.11 |
