PV SPD Surge Protection Device
Uc=1200v, In:20kA, Imax: 40kA
Low voltage Protection Level
Thermal Tripping Protection, status indicator, and remote signaling
IEC 61643-11
OEM/ODM acceptable
Item NO.:

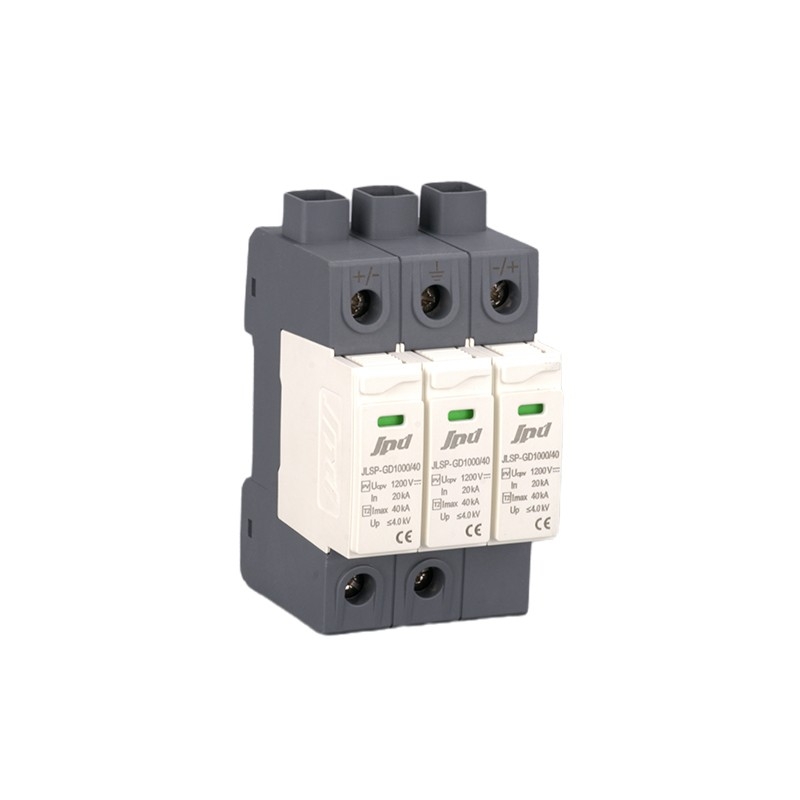

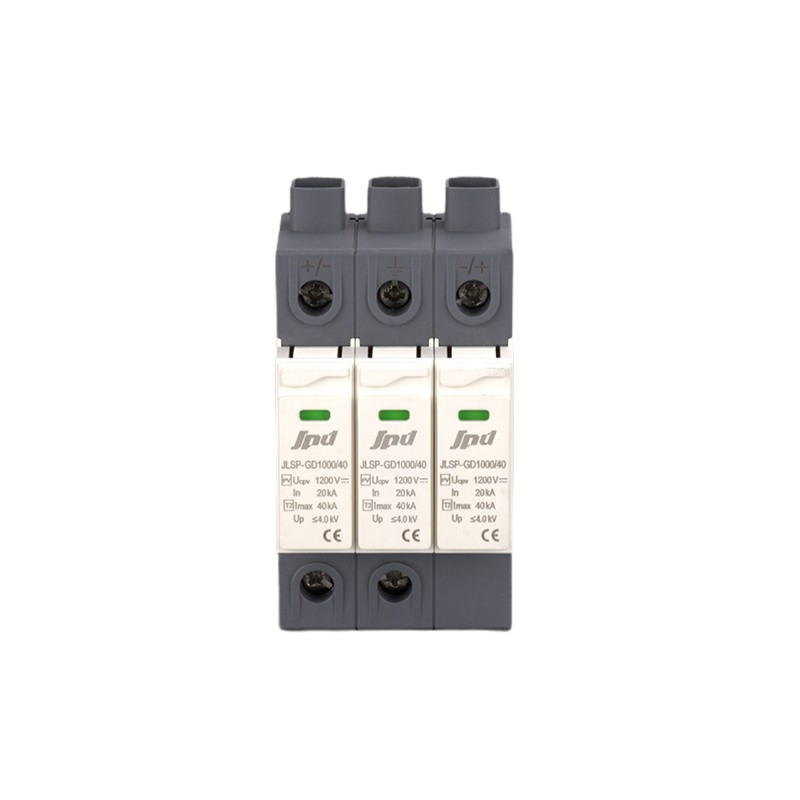

JLSP-GD1000/40/3Pjinli SPD JLSP-GD1000/40 Surge Protection Device for PV System
Photovoltaic surge protection device is available for 1000v and 1500v dc power system of photovoltaic power generation equipment in dc side, dc combiner box, inverter in dc side etc.
Features:
* Reliable thermal tripping protection
* Status indicator: Green (normal) Red（Defect）
* Fast response: action within nanosecond
* Optional remote signaling
* IEC Class: Class Ⅱ
* Apply to PV system:≤DC1100V
* Pluggable design
| Model | JLSP-GD1000/40/3P |
| Descrpition | PV Surge Protection Device |
| DC Network Un(V) | 1000,1100 |
| Max. AC operating voltage (Uc) | 1200 |
| Nominal discharge current In(kA) | 20kA |
| Max. Discharge current Imax (kA) | 40kA |
| Protection level Up (kV) | ≦4.0 |
| Dimensions(1P) (mm) | 18*90*62 |
| Protection rating | IP 20 |
| Response time tA (ns) | ≦25 |
| Oeprating temperature | -40/+85℃ |
| Mounting | DIN Rail 35mm |
| Flame Retardant Rating | UL94 V-0 |
| Standards compliance | IEC61643-11, GB/T18802.11 |
