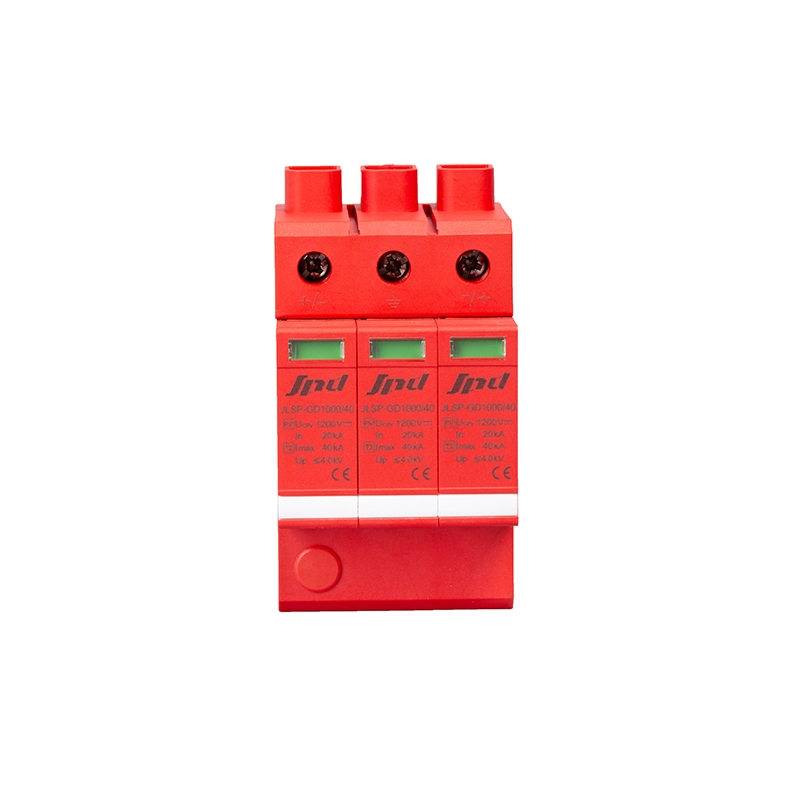

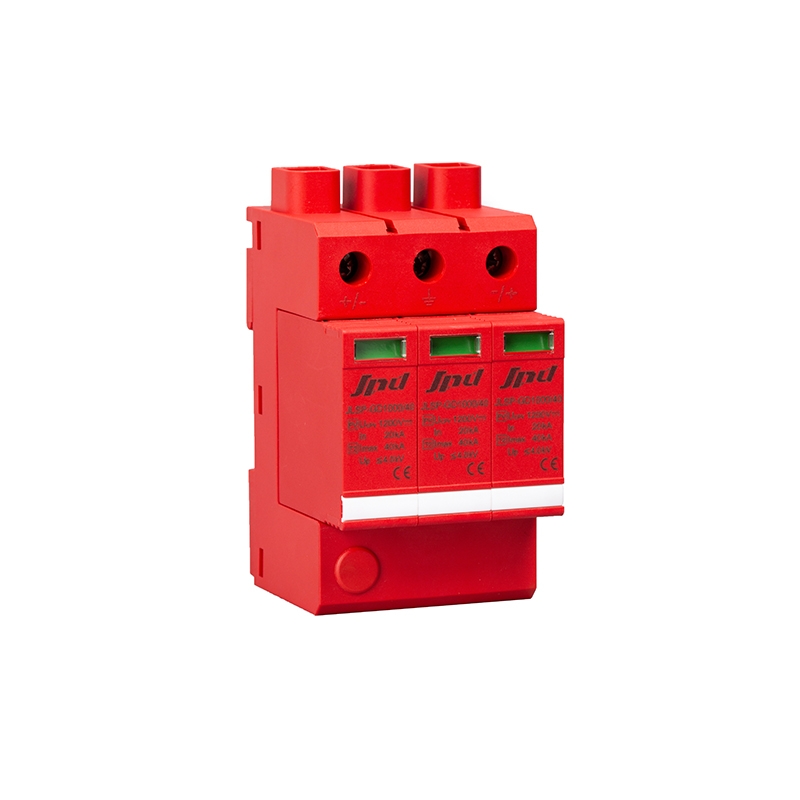

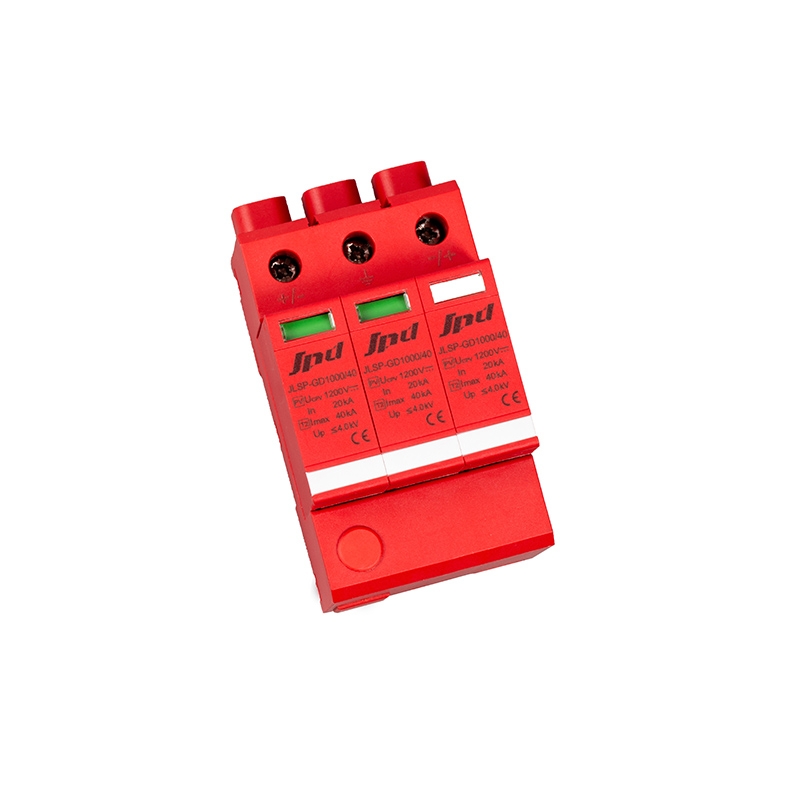

Type 2 surge protector 1000V SPD, DC SPD 3 pole
In:20kA; Imax: 40kA
Low voltage Up
Internal disconnection, statue indicator, and remote signaling
IEC 61643-11
CE, UL certificate
SPD factory, professional OEM manufacturer
Item NO.:
JLSP-GD1000/40/3POrder(MOQ):
10Product Origin:
ChinaColor:
RedShipping Port:
ShanghaiType 2 DC surge protection device 1000V solar SPD
Photovoltaic surge protection device is avalibale for 600V, 800V, 1000V and 1500V dc power system of phototvoltaic power generation equipment in DC side, DC combiner box, inverter in DC side, etc.
PV standard IEC 61643-31
Low-voltage surge protective devices-Surge protective devices for specific application including d.c.-Part 31: Requirements and tests for SPDs in photovoltaic applications
Features:
* Reliable thermal tripping protection
* Status indicator: Green(normal) Red（Defect）
* Fast response: action within nanosecond
* Optional remote signaling
* Pluggable design, easy to mount
* Latest reflow soldering process, ensure product consistency
| Model | JLSP-GD1000/40/3P |
| Descrpition | Type 2 DC surge protector-3poles |
| Network | 1000,1100V |
| Max. AC operating voltage (Uc) | 1200V |
| Nominal discharge current In(kA) | 20kA |
| Max. Discharge current Imax (kA) | 40kA |
| Protection level Up (kV) | ≦4.0kV |
| Dimensions | 36*90*62MM |
| Protection rating | IP 20 |
| Response time tA (ns) | ≦25 |
| Oeprating temperature | -40/+85℃ |
| Mounting | DIN Rail 35mm |
| Housing material | Thermoplastic UL94-V0 |
| Standards compliance | IEC64643-11, GB/T18802.11 |
