Jinli Ethernet RJ45 surge protector

Network surge protection device RJ 45

Max. data rate:100Mbps 1000Mbps

Din rail mounted
OEM/ODM SPD

Sungrow, Goodwe, Growatt supplier, and work with Huawei

Item NO.:
JLSP-DAEK

Inquire now

Product Detail

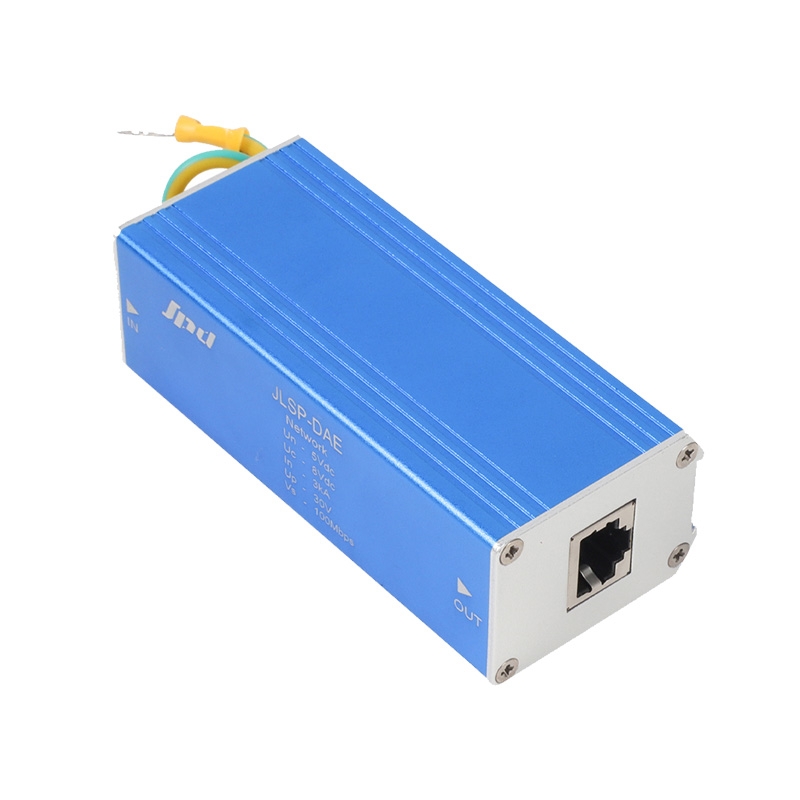

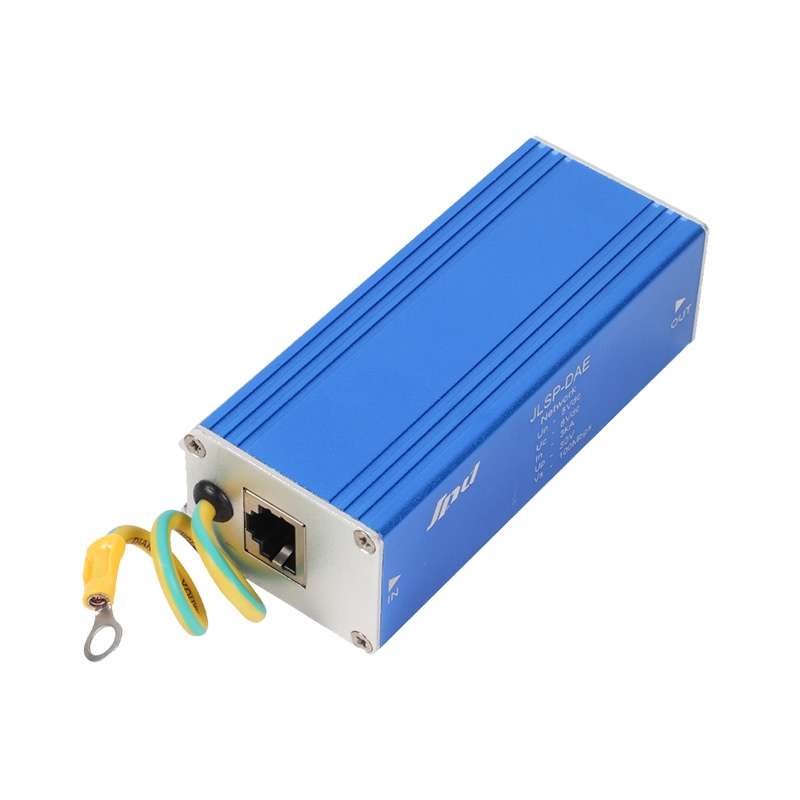

Jinli Ethernet network surge protector 100M 1000M, POE surge protection

Network signal surge protector is widely used in the comprehensive network wiring of office and industrial places and similar data communication systems, such as various computer network equipment, switches, routers, hub, program-controlled switches, small switchboard, telephone, fax machine and other sensitive communication network lines and audio signal lines.

Standard compliance: IEC61643-21

It is designed according to the surge protector standard of IEC communication products. The product has good frequency transmission characteristics, high throughput and extremely fast response, and can protect 2 to 8 communication lines.

Features:

* Low insertion loss and low voltage protection level

* Fast response: action within nanosecond

* High rate transmission

* RJ45 connection

Model	Nominal voltage Un(V)	Max.continuous operatingvoltage Uc(Vdc)	Nominal discharge current In(kA)	Protection level Up(line-line)(V)(B2:4kV)	Protection level Up(line-PE)(V)(B2:4kV)	Max. data rate (Mbps)	Insertion loss(dB)

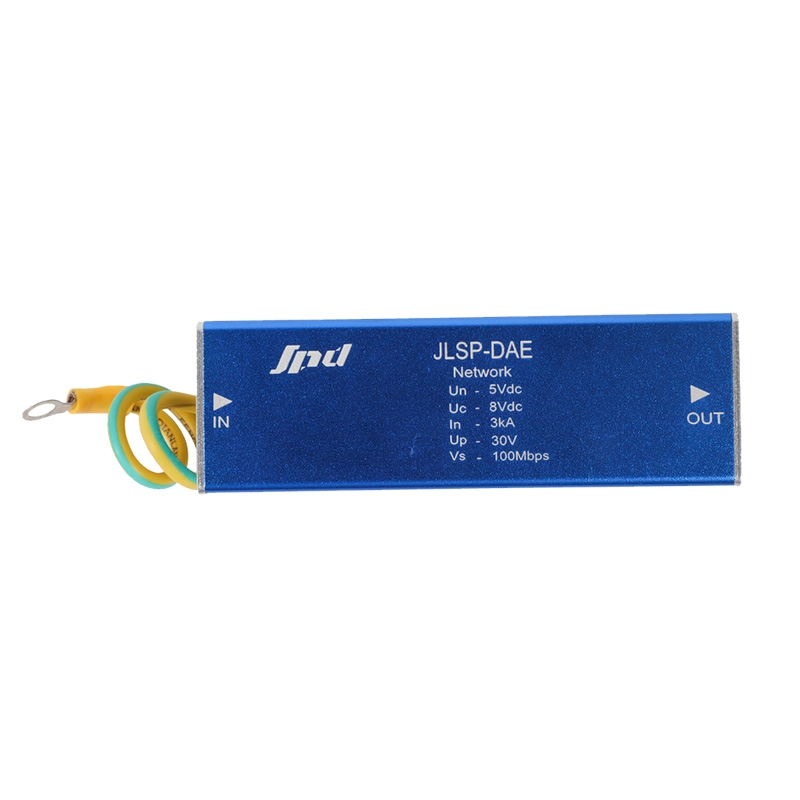

JLSP-DAE	5	8	5	≦30	≦600	100	≦0.3
JLSP-DAP110	110	170	5	≦300	≦600	100	≦0.3
JLSP-DAEK	5	8	5	≦30	≦600	1000	≦0.3
JLSP-DAS	5	8	5	≦30	≦600	1000	≦0.3

poe surge protector
