Jinli 33kv lightning arrester AC surge protection devices

High Voltage outdoor Gapless Lightning Arrester Surge Arrester 33kV

Metal-oxide

Silicone rubber

  • Product Detail

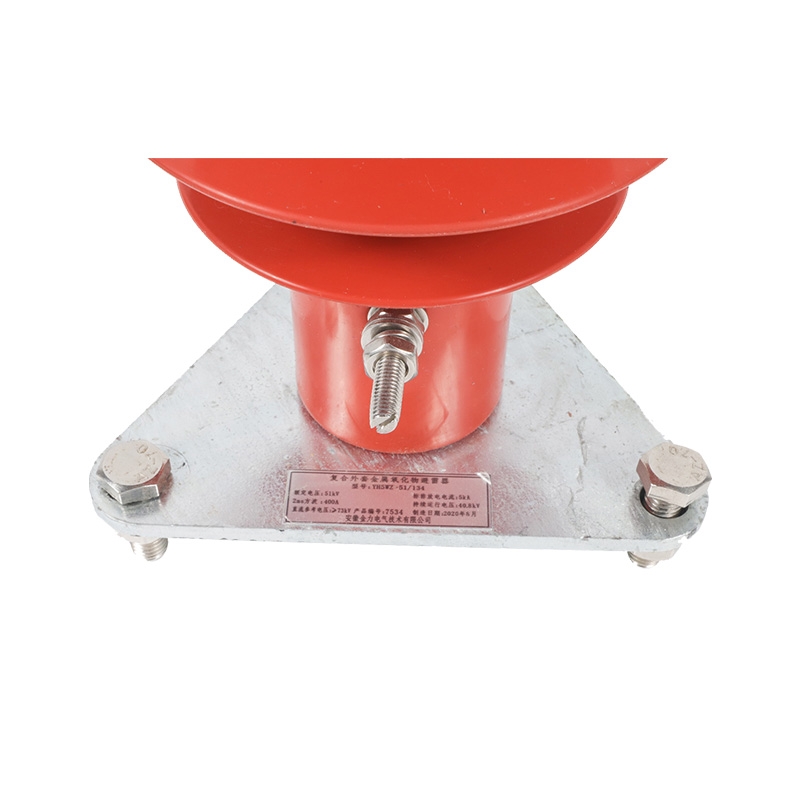

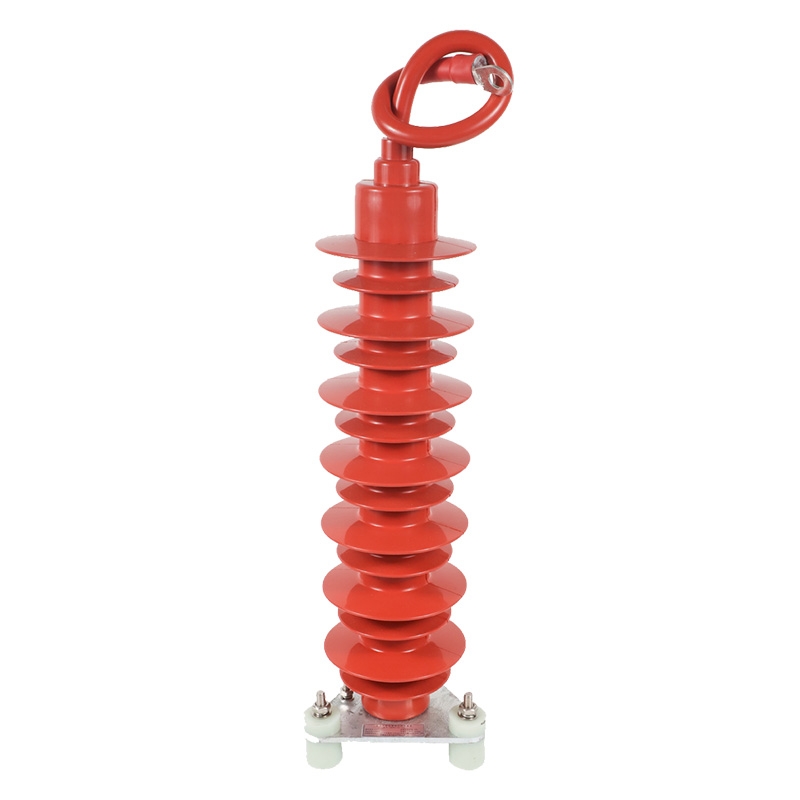

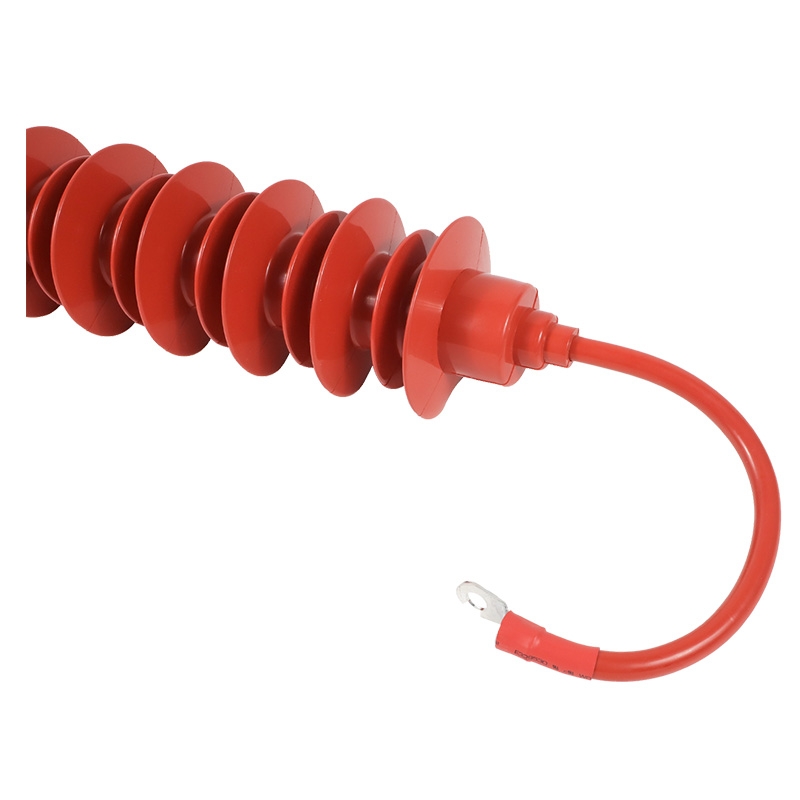

High Voltage outdoor Gapless Lightning Arrester Surge Arrester 33kV

Metal oxide arresters are used to limit overvoltages and are widely used in power generation, transmission and transformation power distribution systems to protect the insulation of electrical equipment from overvoltage damage.


Features:

* Excellent protection characteristics

* Large flow capacity

* Power frequency withstand capacity

* Good pollution resistance

* Unique pressure release device

* Good sealing performance

* Aging resistance

Model YH5W-33/81
Rated voltage (kV) 33
Continuous operating voltage (kV) 27
Nominal discharge current (kA) 5
Peak value of residual voltage under steep impulse current (5kA,1/3μs) (kV) ≤92.5
Peak value of residual voltage under lightning impulse current(5kA,8/20μs) (kV) ≤81
Peak value of residual voltage under switching impulse current(250A,30/60μs) (kV) ≤66.5
DC 1mA reference voltage (kV) ≥48
Leakage current at 75% DC 1mA reference voltage (mA) ≤50
Power frequency reference voltage(RMS)  ≥33
Power frequency reference current (peak value)  1
Continuous current (mA)
Full current  600
Breaking capacity (mA) 150μA
Long duration impulse withstand current (A) 400
4/10μs large impulse withstand current, 2 times (kA/time) 65
Action load  Non-uniformity coefficient1.1;Law of charge85%
Power frequency voltage withstand time characteristics  0.1s/1.2Ur;24h/1Ur;
KV rated voltage absorption capacity (kJ/kV) 4.5
Pressure release capability (kA/s) 25/0.2

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
surge arrester

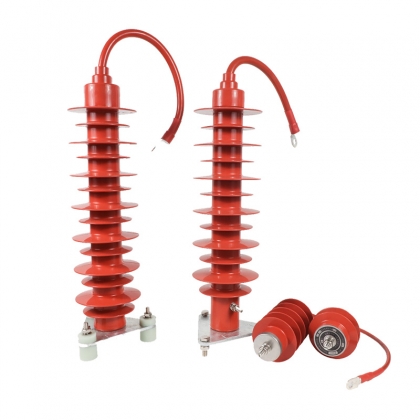

High Voltage outdoor Gapless Lightning Arrester Surge Arrester 10kV
High Voltage outdoor Gapless Lightning Arrester Surge Arrester 10kV Metal-oxide Silicone rubber
pv surge protector
Type 2 1500v Jinli surge protector 40ka spd acwith remote signaling
JLSP-GD1500/40/3P/Y Solar surge protective device 1500V with remote signaling MAX Vdc: 1800V          IMAX: 40KA RoHS, IEC, UL             Phase 3 DIN Rail 35mm Easy to be replaced with pluggable design Packing with inner box to prevent transport vibration
lightning protection 750V
supplier 750v 40ka ac spd power surge protective device
Power surge protection 750V MAX Vac: 750V         IMAX: 40KA RoHS, IEC, UL certificates   Phase:1P, 2P, 3P, 4P DIN Rail 35mm Easy to be replaced with pluggable design Packing with inner box to prevent transport vibration
solar dc protector lightning
800v type 2 40ka solar surge protector lightning spd pv
Solar lightning surge protective device 800V with remote signaling MAX Vdc: 800V         IMAX: 40KA Phase 1, 2, 3, 4 RoHS, IEC, UL DIN Rail 35mm Easy to be replaced with pluggable design Packing with inner box to prevent transport vibration
photovoltaic spd
surge protector spd 1000V JLSP-GD1000/40/3P/Y
JLSP-GD1000/40/3P/Y Solar surge protective device 1000V with remote signaling MAX Vdc: 1200V          IMAX: 40KA RoHS, IEC, UL             Phase 3 DIN Rail 35mm Easy to be replaced with pluggable design Packing with inner box to prevent transport vibration
solar spd 1000v pv surge protector
JLSP-GD1000/40 surge protector spd 1000V
JLSP-GD1000/40 Solar surge protective device 1000V MAX Vdc: 1200V          IMAX: 40KA RoHS, IEC, UL             Phase 1,2,3,4 DIN Rail 35mm Easy to be replaced with pluggable design Packing with inner box to prevent transport vibration
power spd ac

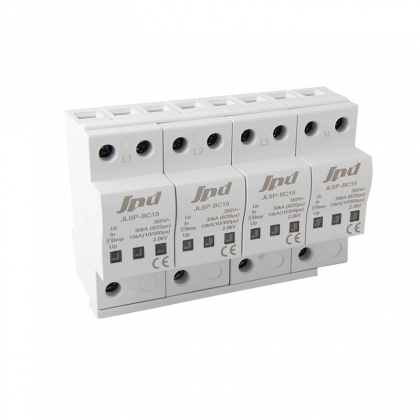

surge lightning protection arrester 230v 400v 15ka Jinli type 2 spd
