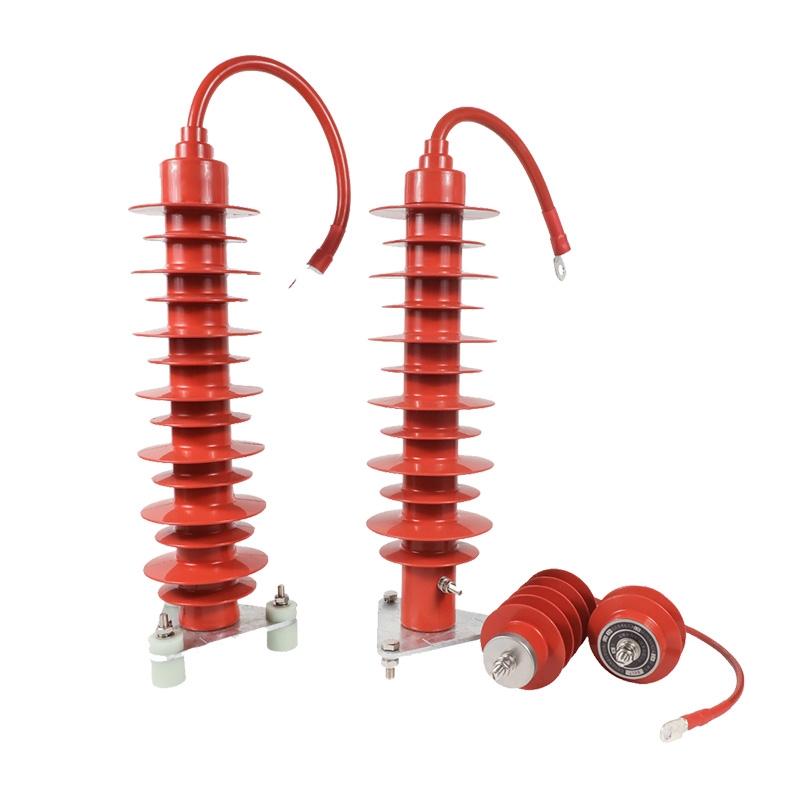

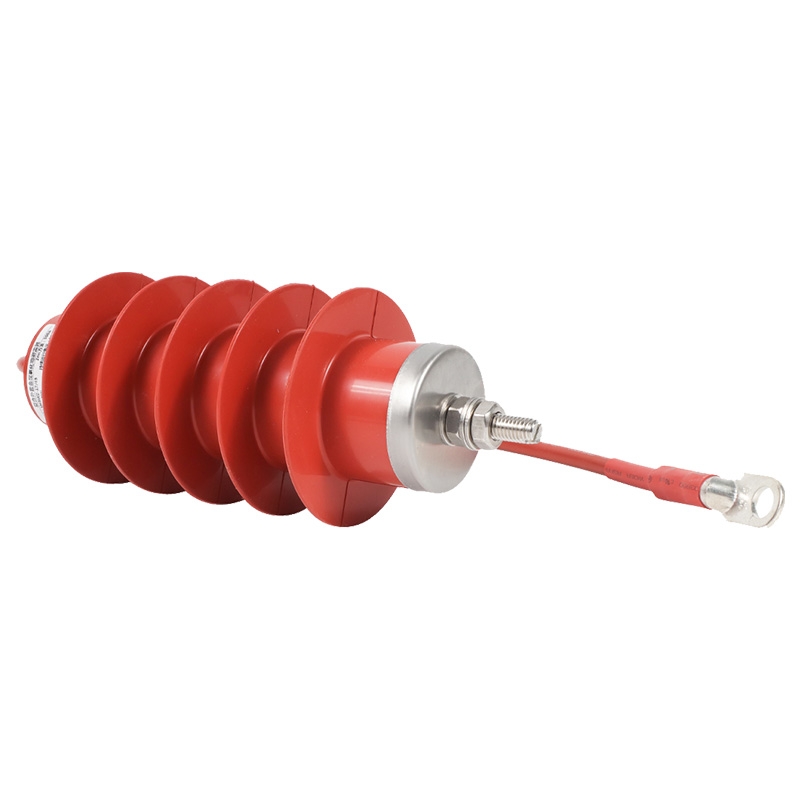

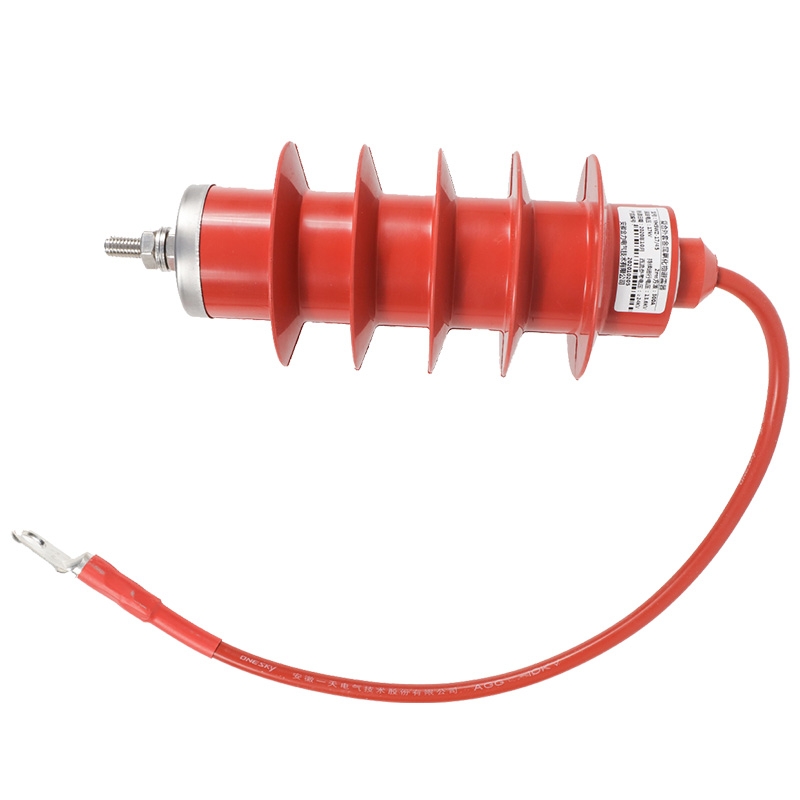

High Voltage outdoor Gapless Lightning Arrester Surge Arrester 10kV

High Voltage outdoor Gapless Lightning Arrester Surge Arrester 10kV

Metal-oxide

Silicone rubber

  • Product Detail

High Voltage outdoor Gapless Lightning Arrester Surge Arrester 10kV

   Metal oxide arresters are used to limit overvoltages and are widely used in power generation, transmission and transformation power distribution systems to protect the insulation of electrical equipment from overvoltage damage.


Features:

* Excellent protection characteristics

* Large flow capacity

* Power frequency withstand capacity

* Good pollution resistance

* Unique pressure release device

* Good sealing performance

* Aging resistance

Model YH5W-12.7/45
Rated voltage (kV) 12.7
Continuous operating voltage (kV) 10
Nominal discharge current (kA) 5
Peak value of residual voltage under steep impulse current (5kA,1/3μs) (kV) ≤51.8
Peak value of residual voltage under lightning impulse current(5kA,8/20μs)(kV) ≤45
Peak value of residual voltage under switching impulse current(250A,30/60μs) (kV) ≤38.3
DC 1mA reference voltage (kV) ≥24
Leakage current at 75% DC 1mA reference voltage (mA) ≤50μA
Power frequency reference voltage(RMS) ≥12.7
Power frequency reference current (peak value) 1
Continuous current (mA)
Full current 600μA
Breaking capacity (mA) 150μA
Long duration impulse withstand current (A) 400
4/10μs large impulse withstand current, 2 times (kA/time) 65
Action load Non-uniformity coefficient1.1;Law of charge85%
Power frequency voltage withstand time characteristics 0.1s/1.2Ur;24h/1Ur;
KV rated voltage absorption capacity (kJ/kV) 4.5
Pressure release capability (kA/s) 25/0.2

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
 AC surge protection devices
Jinli 33kv lightning arrester AC surge protection devices

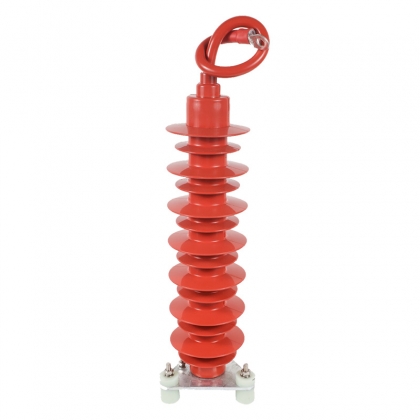

High Voltage outdoor Gapless Lightning Arrester Surge Arrester 33kV Metal-oxide Silicone rubber
dc surge protective device

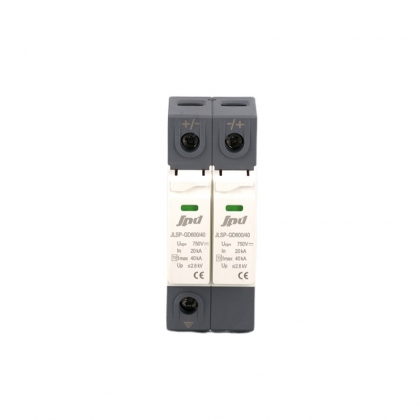

350v 40ka Jinli type 2 dc surge protective device 220v
Surge protective device 220V 350V MAX Vdc: 350V          IMAX: 40KA RoHS, IEC, UL           Phase 2P DIN Rail 35mm Easy to be replaced with pluggable design Packing with inner box to prevent transport vibration
power spd ac
surge lightning protection arrester Jinli supplier 50ka 400v
AC surge protective device 230V 400V Lightning impluse current (10/350us) 25KA AC network Un: 230/400V         Iimp(10/350us): 25KA       In(8/20us): 50KA RoHS, IEC, UL certificates         Phase 1P, 2P, 3P, 4P DIN Rail 35mm Easy to be replaced with pluggable design Packing with inner box to prevent transport vibration
Surge Protection Devices
Single phase surge lightning protection device SPD 600V
Type 2 surge protector 600v SPD In:20kA Imax: 40kA Low voltage Up Internal disconnection, statue indicator, and remote signaling IEC 61643-11 OEM acceptable
surge protective device spd
Jinli power surge protective device ac spd 385v 40ka type 2
Power surge protection 230/400, 240/415V MAX Vac: 385V         IMAX: 40KA RoHS, IEC, UL certificates   Phase:1P, 2P, 3P, 4P DIN Rail 35mm Easy to be replaced with pluggable design Packing with inner box to prevent transport vibration
1000v dc spd
Jinli type 1+2 solar surge protector device 1000V DC SPD
Type 1+2 surge protector 1000V SPD, 3poles surge arrester, solar spd Iimp: 6.5kA; In:20kA; Imax: 40kA Low voltage Up Internal disconnection, statue indicator, and remote signaling IEC 61643-11 UL, TUV, CE, RoHs OEM acceptable Sungrow, Goodwe supplier
type 1 surge protection device

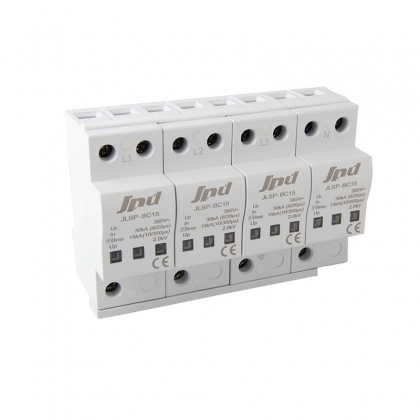

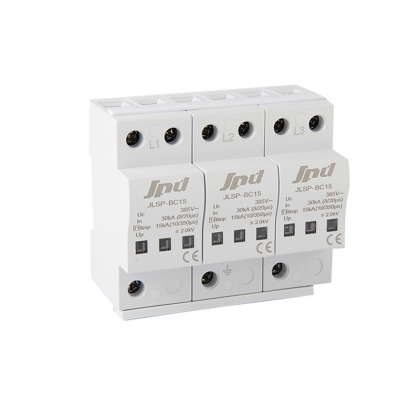

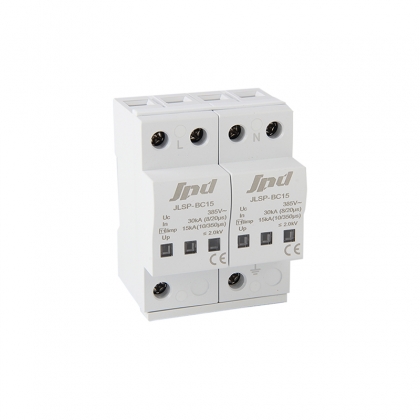

Type 1 2 AC surge protection device SPD 15kA
