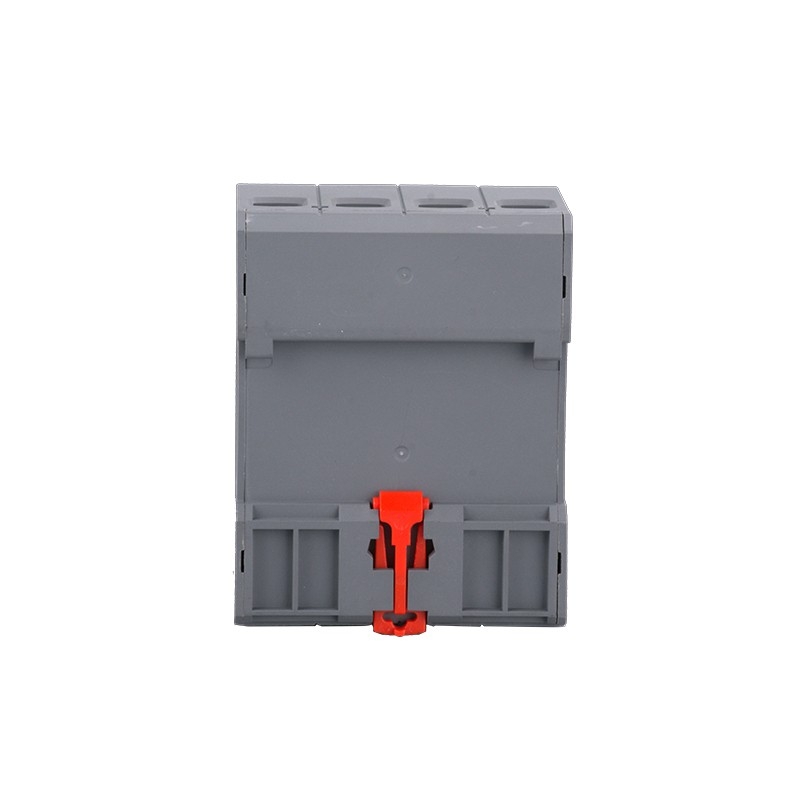

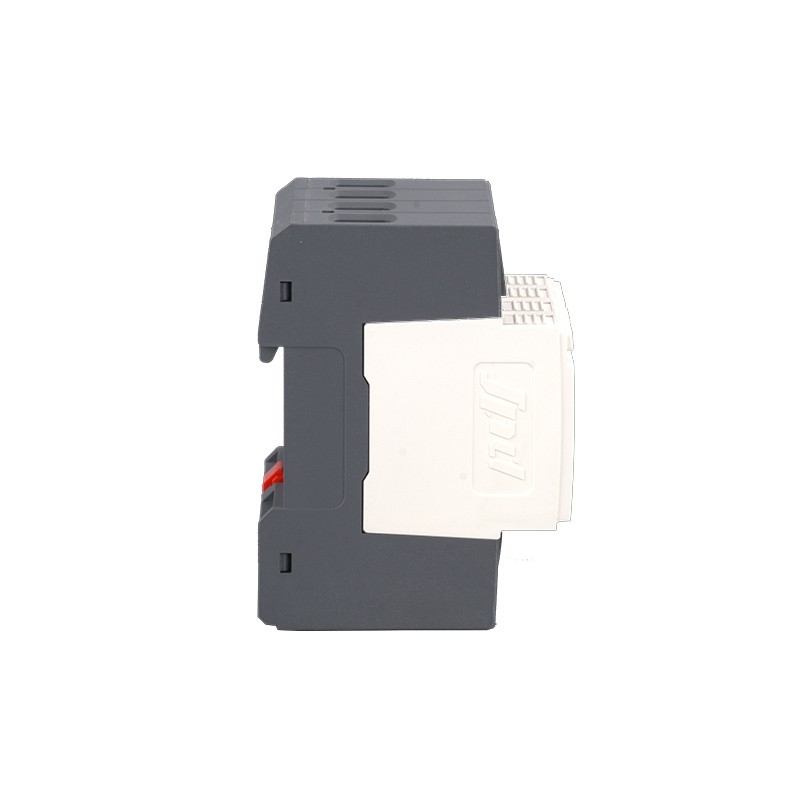

GA275v 40ka 4P ac spd power surge protective device

AC surge protective device 275V
MAX Vac: 275V         IMAX: 40KA

RoHS, IEC, UL certificates       Phase 4P

DIN Rail 35mm

Easy to be replaced with pluggable design

Packing with inner box to prevent transport vibration


  • Item NO.:

    JLSP-GA275/40/4P

  • Order(MOQ):

    1

  • Product Origin:

    CN

  • Color:

    red
Inquire now
  • Product Detail

Type 2 AC SPD 4P 40kA 230V 275V

AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 420V 485V and 750V.


Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods

Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red（Defect）

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency


Model

JLSP-GA275/40/4P

Descrpition

Type 2 AC surge protector-4poles

Network

202,230,102/208V (TN/TT/IT)

Max. AC operating voltage (Uc)

275V

Nominal discharge current In(kA)

20kA

Max. Discharge current Imax (kA)

40kA

Protection level Up (kV)

≦1.4kV

Dimensions

72*90*62MM

Protection rating

IP 20

Response time tA (ns)

≦25

Oeprating temperature

-40/+85℃

Mounting

DIN Rail 35mm

Housing material

Thermoplastic UL94-V0

Standards compliance

IEC64643-11, GB/T18802.11
