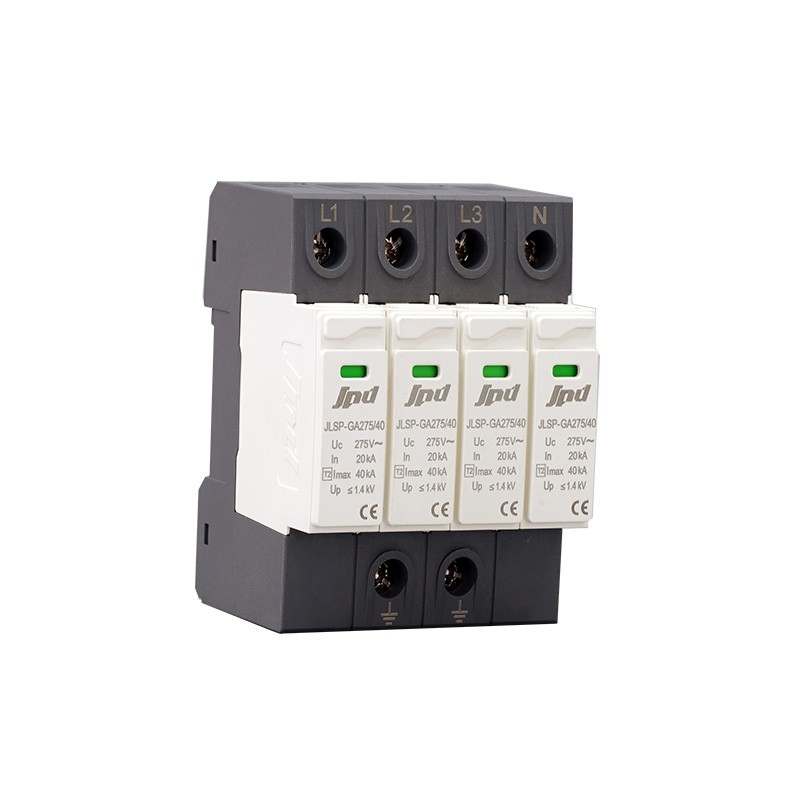

Type 2 surge protector SPD 275V, three phase surge protection device with CE certificate
In:20kA; Imax: 40kA
Low voltage Up
Internal disconnection, statue indicator, and remote signaling
IEC 61643-11
OEM/ODM SPD manufacturer
Item NO.:
JLSP-GA275/40/4POrder(MOQ):
10Product Origin:
ChinaColor:
RedShipping Port:
ShanghaiType 2 single phase ac power surge protector device 275V SPD, 3 phase spd
AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.
Standard compliance: IEC61643-11, EN61643-11
IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods
Features:
* Reliable thermal tripping protection
* Status indicator: Green(normal) Red（Defect）
* Fast response: action within nanosecond
* Optional remote signaling
* Pluggable design, easy to mount
* Latest reflow soldering process, ensure product consistency
| Model | JLSP-GA275/40/4P |
| Descrpition | Type 2 AC surge protector-4poles |
| Network | 202,230,120/208V (TN/TT/IT) |
| Max. AC operating voltage (Uc) | 275V |
| Nominal discharge current In(kA) | 20kA |
| Max. Discharge current Imax (kA) | 40kA |
| Protection level Up (kV) | ≦1.4kV |
| Dimensions | 72*90*62MM |
| Protection rating | IP 20 |
| Response time tA (ns) | ≦25 |
| Oeprating temperature | -40/+85℃ |
| Mounting | DIN Rail 35mm |
| Housing material | Thermoplastic UL94-V0 |
| Standards compliance | IEC64643-11, GB/T18802.11 |
