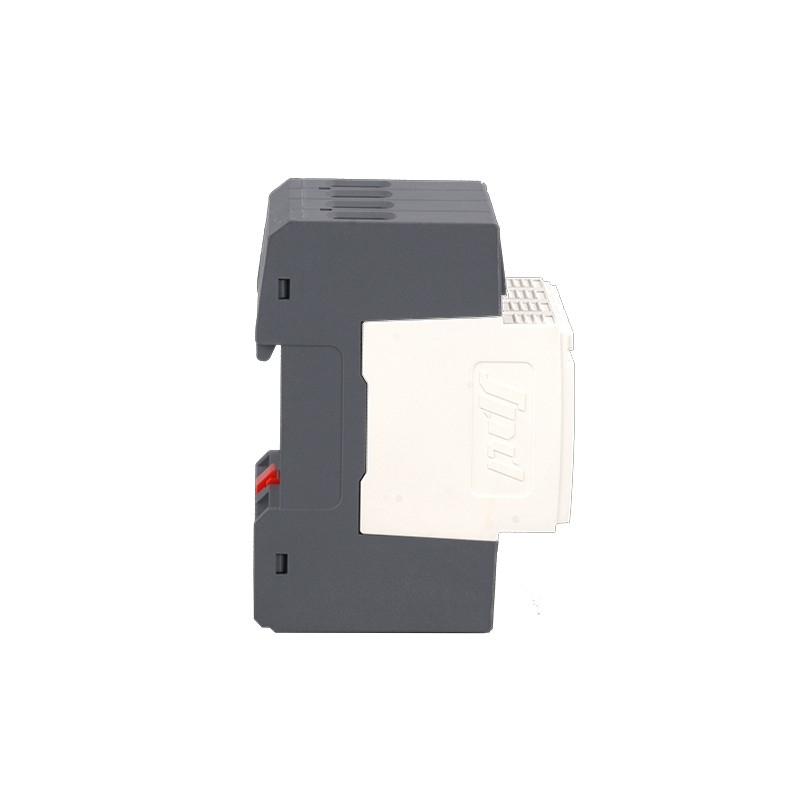

JLSP-DC350/40 dc surge protection device spd

Surge protective device 220V 350V

MAX Vdc: 350V IMAX: 40KA

RoHS, IEC, UL Phase 1,2,3,4P

DIN Rail 35mm

Easy to be replaced with pluggable design

Packing with inner box to prevent transport vibration

Item NO.:
JLSP-DC350/40
Order(MOQ):
1
Product Origin:
CN
Color:
red

Inquire now

Product Detail

Jinli type 2 surge protection device 220V 350V DC SPD

DC power surge protective device is used in all kinds of DC power system, such as industrial control system, communication system and fire control system with DC voltage of 24V, 48V, 110V, 220V 750V etc.

Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods

Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red（Defect）

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency

Model	JLSP-DC350/40/1P, 2P, 3P, 4P
Descrpition	Type 2 DC surge protector
DC Network	220V
Max. AC operating voltage (Uc)	350V
Nominal discharge current In(kA)	20kA
Max. Discharge current Imax (kA)	40kA
Protection level Up (kV)	≦1.4kV
Dimensions	369062MM
Protection rating	IP 20
Response time tA (ns)	≦25
Oeprating temperature	-40/+85℃
Mounting	DIN Rail 35mm
Housing material	Thermoplastic UL94-V0
Standards compliance	IEC64643-11, GB/T18802.11

Hot tag: surge protector for lightning strike ac dc pv system phase 1,2,3,4
power surge protection 24V 48V 175V 275V 600V signal surge protection arrester
spd compliance with IEC, UL, GB/T
solar surge protective device 600v 800v 1000v 1500v
