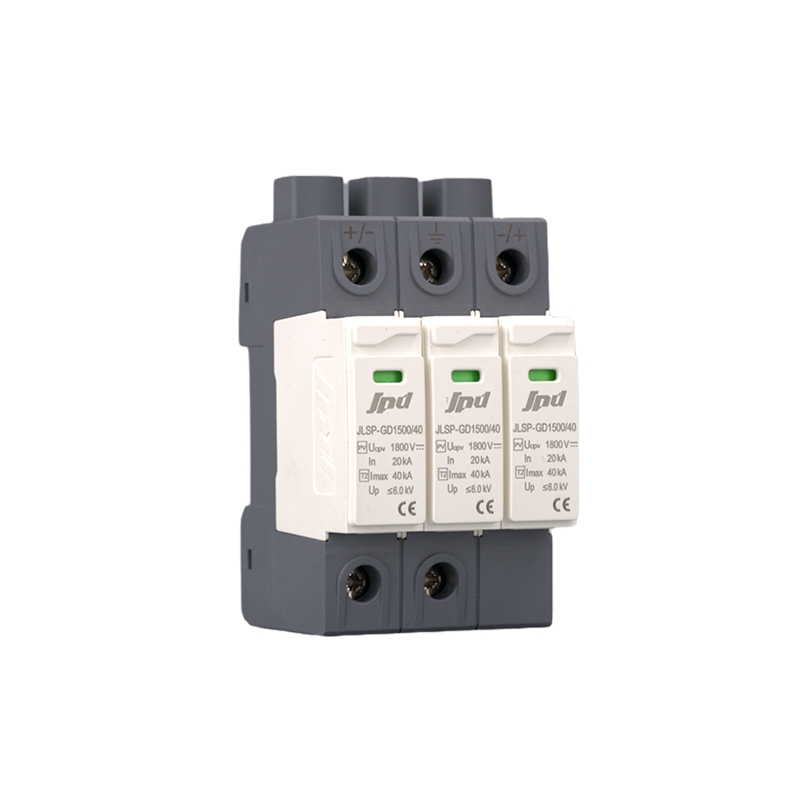

Jinli solar dc surge protection device 3 poles 1500V

Type 2 surge protector 1500V SPD, 3P dc spd

In:20kA; Imax: 40kA

Low voltage Up

Internal disconnection, statue indicator, and remote signaling

IEC 61643-11

CE certificate

OEM acceptable

SPD factory, professional manufacturer

Item NO.:
JLSP-GD1500/40/3P
Order(MOQ):
10
Product Origin:
China
Color:
Red
Shipping Port:
Shanghai

Inquire now

Product Detail

Type 2 DC surge protection device 1500V solar SPD

Photovoltaic surge protection device is avalibale for 600V, 800V, 1000V and 1500V dc power system of photovoltaic power generation equipment in DC side, DC combiner box, inverter in DC side, etc.

PV standard IEC 61643-31

Low-voltage surge protective devices-Surge protective devices for specific application including d.c.-Part 31: Requirements and tests for SPDs in photovoltaic applications

Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red（Defect）

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency

Model	JLSP-GD1500/40/3P
Descrpition	Type 2 DC surge protector-3poles
Network	1500V
Max. AC operating voltage (Uc)	1800V
Nominal discharge current In(kA)	20kA
Max. Discharge current Imax (kA)	40kA
Protection level Up (kV)	≦6.0kV
Dimensions	549062MM
Protection rating	IP 20
Response time tA (ns)	≦25
Oeprating temperature	-40/+85℃
Mounting	DIN Rail 35mm
Housing material	Thermoplastic UL94-V0
Standards compliance	IEC64643-11, GB/T18802.11

Hot tags: dc surge protection device for solar projects, dc surge protector for PV systems, dc spd 600V for solar inverter, dc spd 500V for photovaltic projects, single phase dc spd, type 2 surge protection device, dc spd, dc surge protector device, surge arrester, dc spd 1500V, surge protection device 1500V, dc spd 1500V for solar system
