SPD AC Surge Protection Device
Uc=385v, In:40kA, Imax: 80kA
Low voltage Protection Level
Thermal Tripping Protection, status indicator, and remote signaling
IEC 61643-11
OEM/ODM acceptable
Item NO.:

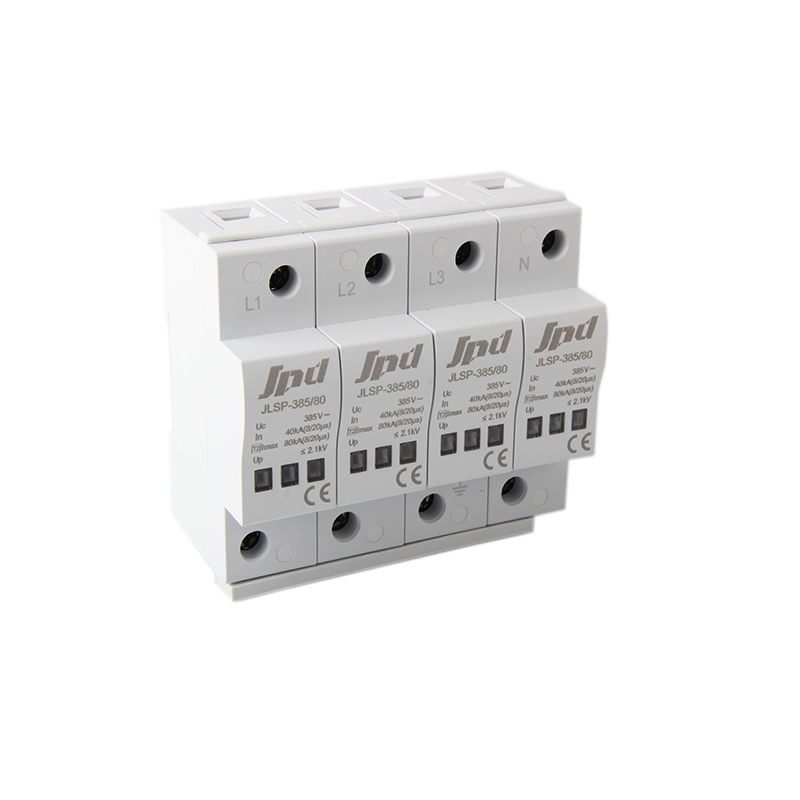

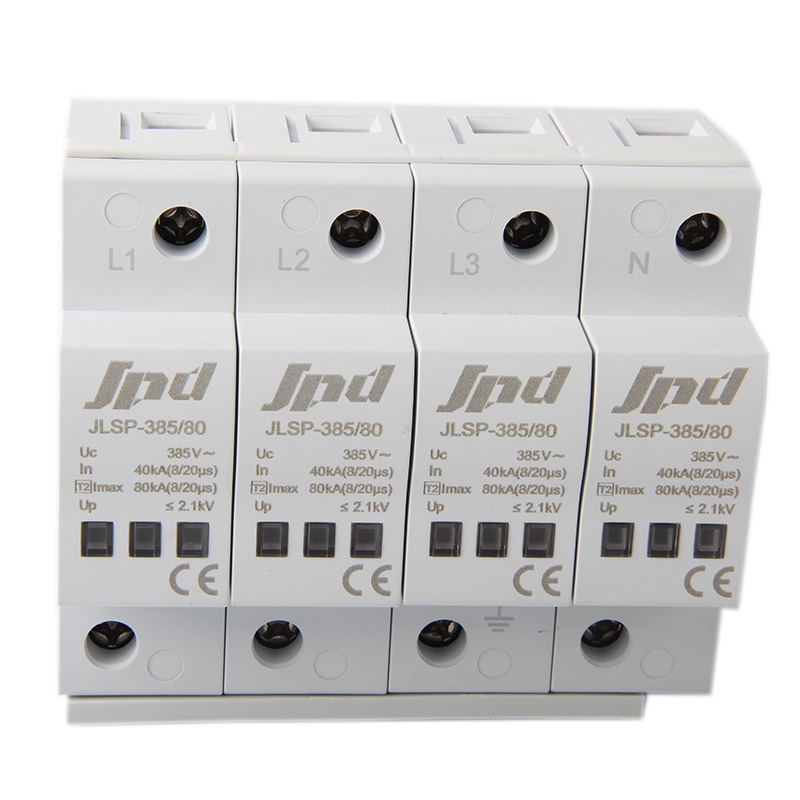

JLSP-385/80/4P385v 80kA Surge Protector Arrester Jinli SPD JLSP-385/80
AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.
Standard compliance: IEC61643-11, EN61643-11
IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods
Features:
* Reliable thermal tripping protection
* Status indicator: Transparent (normal) Red（Defect）
* Fast response: action within nanosecond
* Optional remote signaling
* IEC Class: Class Ⅱ
| Model | JLSP-385/80/4P |
| Descrpition | Type 2 AC Surge Protection Device |
| AC Network Un (50/60Hz) (V) | 230/400,240/415(TN/TT/IT) |
| Max. AC operating voltage (Uc) | 385V |
| Nominal discharge current In(kA) | 40kA |
| Max. Discharge current Imax (kA) | 80kA |
| Protection level Up (kV) | ≦2.1 |
| Dimensions(1P) (mm) | 27*90*62 |
| Protection rating | IP 20 |
| Response time tA (ns) | ≦25 |
| Oeprating temperature | -40/+85℃ |
| Mounting | DIN Rail 35mm |
| Flame Retardant Rating | UL94 V-0 |
| Standards compliance | IEC61643-11, GB/T18802.11 |
