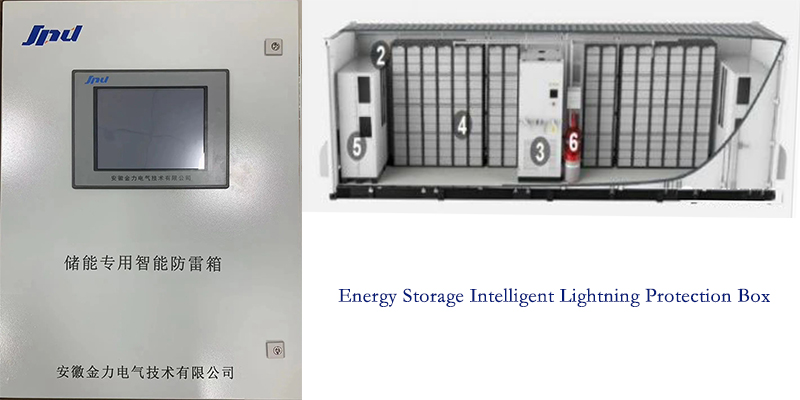

A dedicated intelligent lightning protection box for energy storage should be installed at the entrance of the DC cable in the battery compartment to prevent external lightning overvoltage from invading the energy storage battery compartment system and causing equipment damage. The intelligent lightning protection box for energy storage should utilize modern microcomputer technology and communication technology to achieve internal SPD operation status monitoring, lightning data monitoring, and other functions.

The specific functions are as follows:
1) Maximum continuous working voltage Uc: 1200VDC (DC 1000V system), 1800VDC (DC 1500V system);
2) Nominal discharge current In: not less than 100kA (8/20uS);
3) Lightning impulse current Iimp: not less than 12.5kA (10/350uS);
4) Internal lightning protection products have TUV and CE certification certificates, which meet the verification of aging tests at 85 ℃, 85% RH, and 1000HRS;
5) Equipped with functions such as SPD power loss, SPD status, lightning strike time, lightning strike frequency, lightning peak monitoring, and equipped with RS485 communication port and other functions;

6) The panel has an integrated touch screen of no less than 7 inches, with a friendly human-machine interface to store lightning protection data, analyze and export data reports, and reserve a data upload interface.

With the explosion of energy storage demand, relevant companies are accelerating the pace of laying out new types of energy storage.  Anhui Jinli Energy Storage Intelligent Lightning Protection Box is applied to the CR Solar Hydrogen Coupling and Fishery Solar Complementary Power Generation Project. Our company will continue to delve into the energy storage field, explore the difficulties and pain points of users on site, and ensure the safe operation of user energy storage projects, creating a safe and worry free electricity environment!
